ASPER 79 GHz RADAR PLATFORM

180° FoV Radar Sensors for Commercial Vehicles

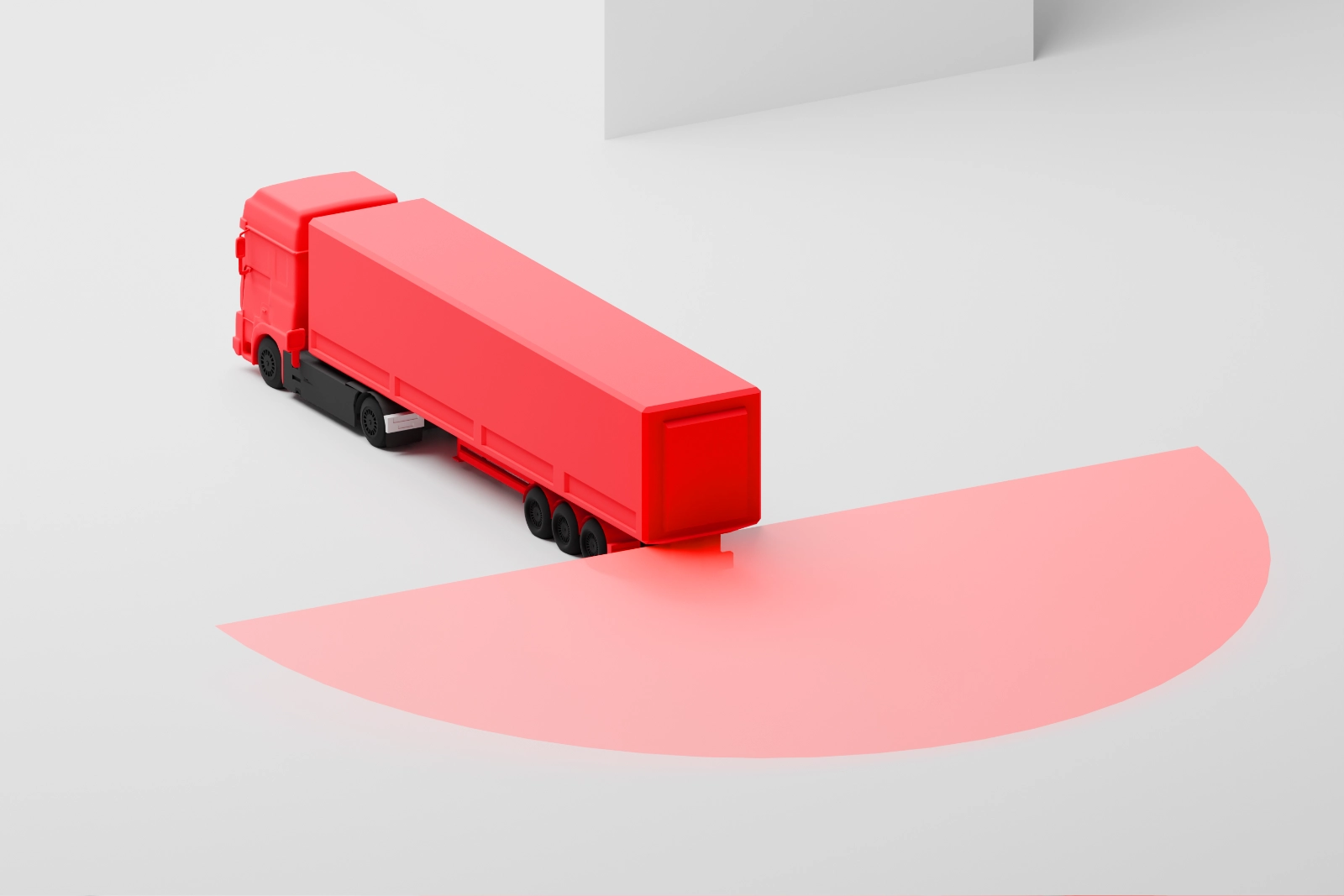

NOVELIC’s ASPER 79 GHz mmWave radar modules cover a wide 180° field of view (FoV) with only one radar chip, enabling robust BSIS (blind spot information system), MOIS (moving off information system), AEB (automatic emergency braking system), and RPAS (rear parking alert system) functionality for commercial and transportation vehicles, as a compact and cost-effective solution.

180°

field of view

<10cm

min range

up to 100m

max range

~79GHz

frequency band

12-36V

Supply Voltage

CAN

Interface

EDGE

processing

Customizable Mounting Hardware

Compliant with international regulations

UN ECE R151, R158, R159

India AIS 145, AIS 186, AIS 187

China GB/T 39265-2020

commercial vehicle blind spot information system

ASPER 180° FoV Radar	Competitor Solutions

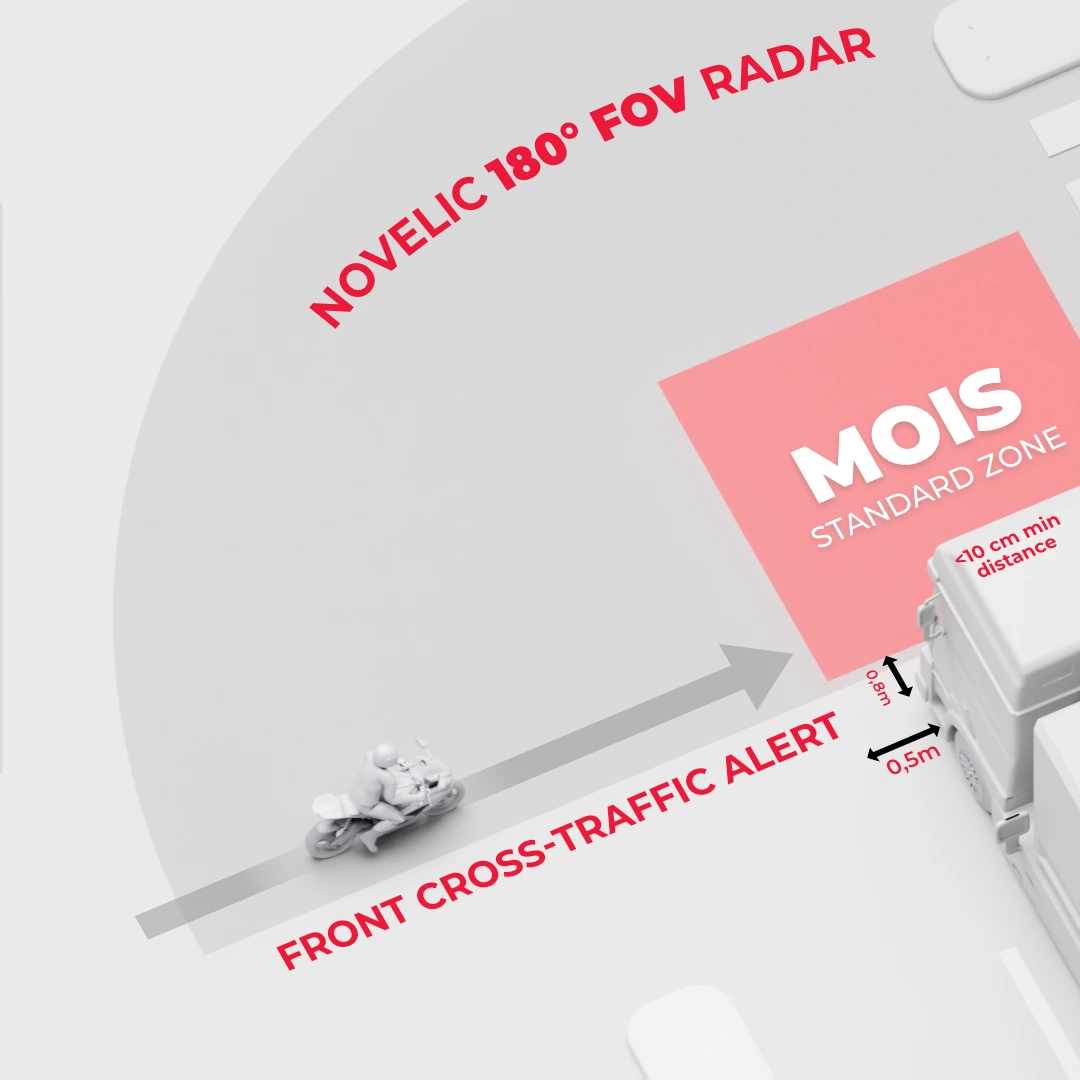

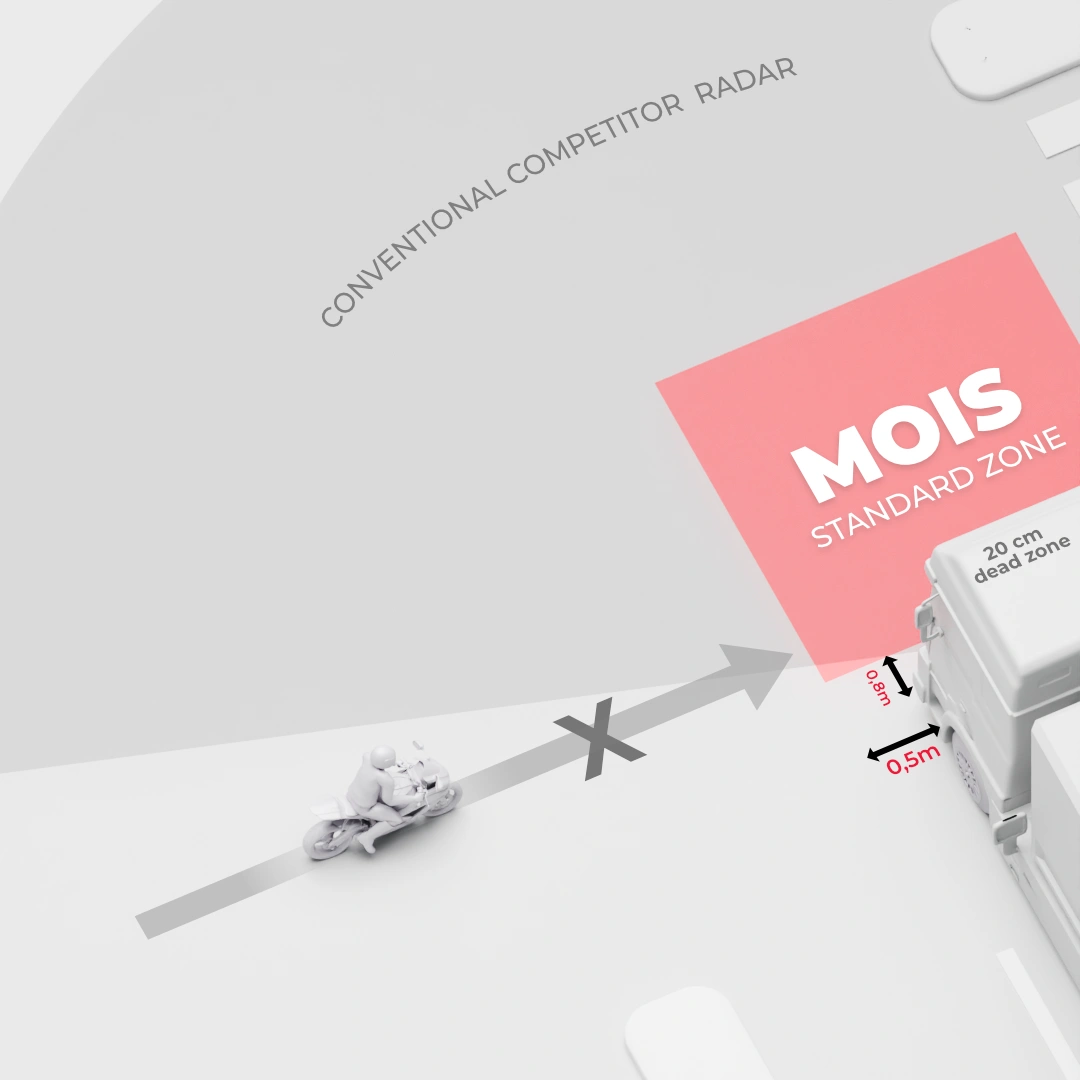

Covers 180° horizontally, with a minimum detection distance of less than 10 cm Can detect a static adult or child at a distance of 20 cm Can detect a bicycle (moving object) at a distance of 20-30cm from the truck Additional functionality: cross-traffic alert	Typical FoV of 120-150°, and a minimum detection distance of 20cm Cannot detect static targets at a distance of 20cm Cannot detect a moving object at a distance of 20-30cm Cannot detect upcoming passenger vehicles, two-wheelers or pedestrians in the incoming cross-traffic

A compact, cost effective solution

Compared to existing solutions on the market, NOVELIC’s sensor is significantly smaller, while achieving a wide 180° field-of-view with only one radar chip.

Radar data processing is done on the module itself, with processed data being sent over a CAN interface, or an automotive-grade wireless interface. This enables easier integration and a lower system cost for vehicles that may not necessary have a CAN network in place. The sensor can thus be easily employed in aftermarket solutions, for retrofitting.

The same module is used for blind spot monitoring, lane change assist, moving-off information systems, and front/rear collision warnings for semi-trailer trucks, buses, dump trucks and more. AUTOSAR and cybersecurity functionality can be provided as needed.

Application scenarios

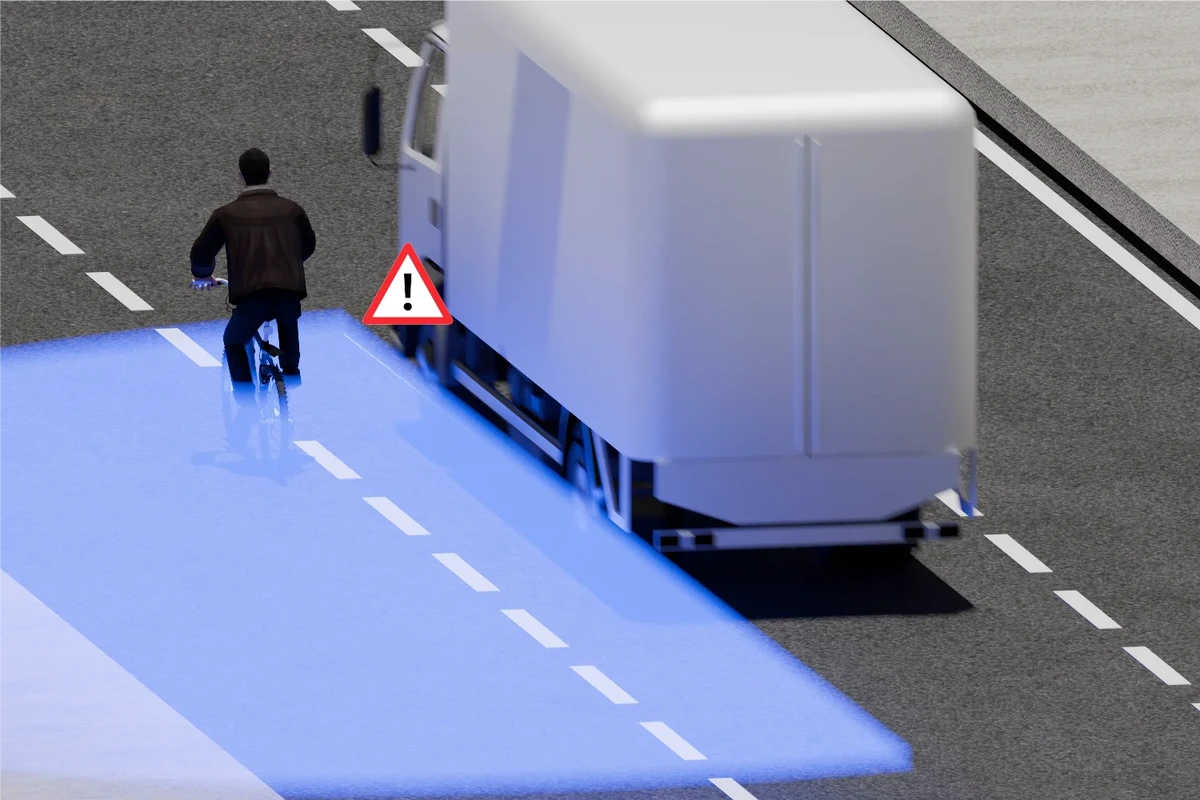

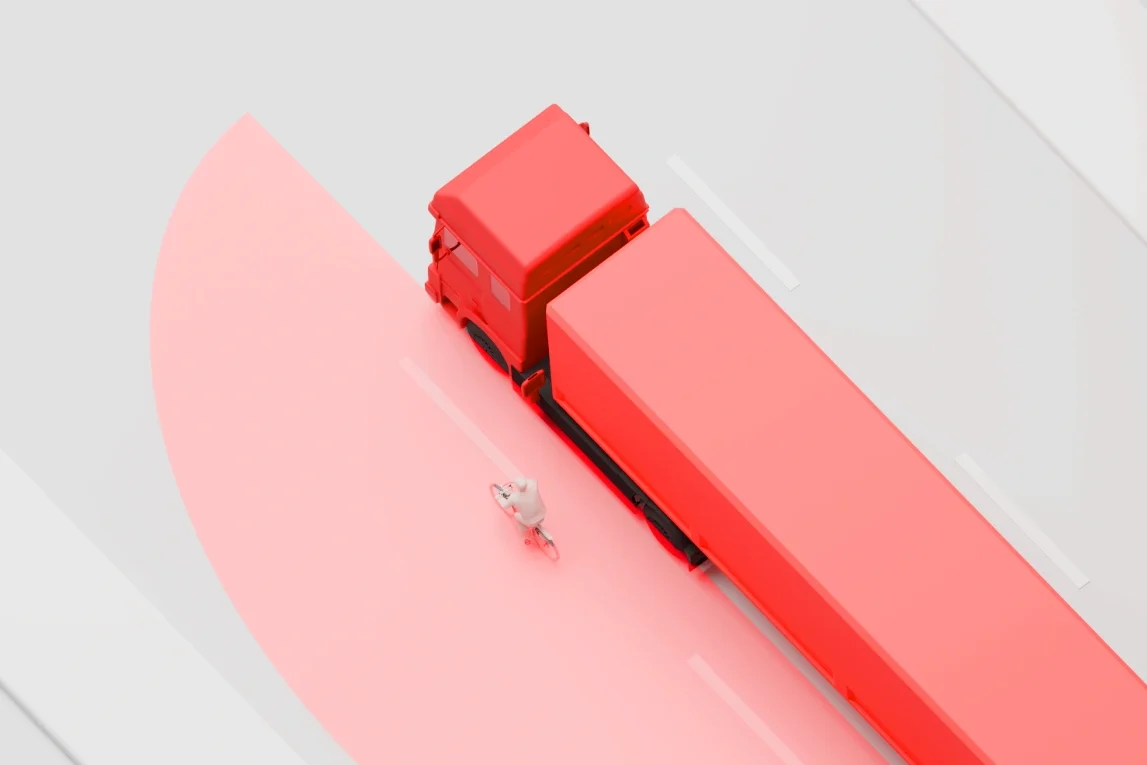

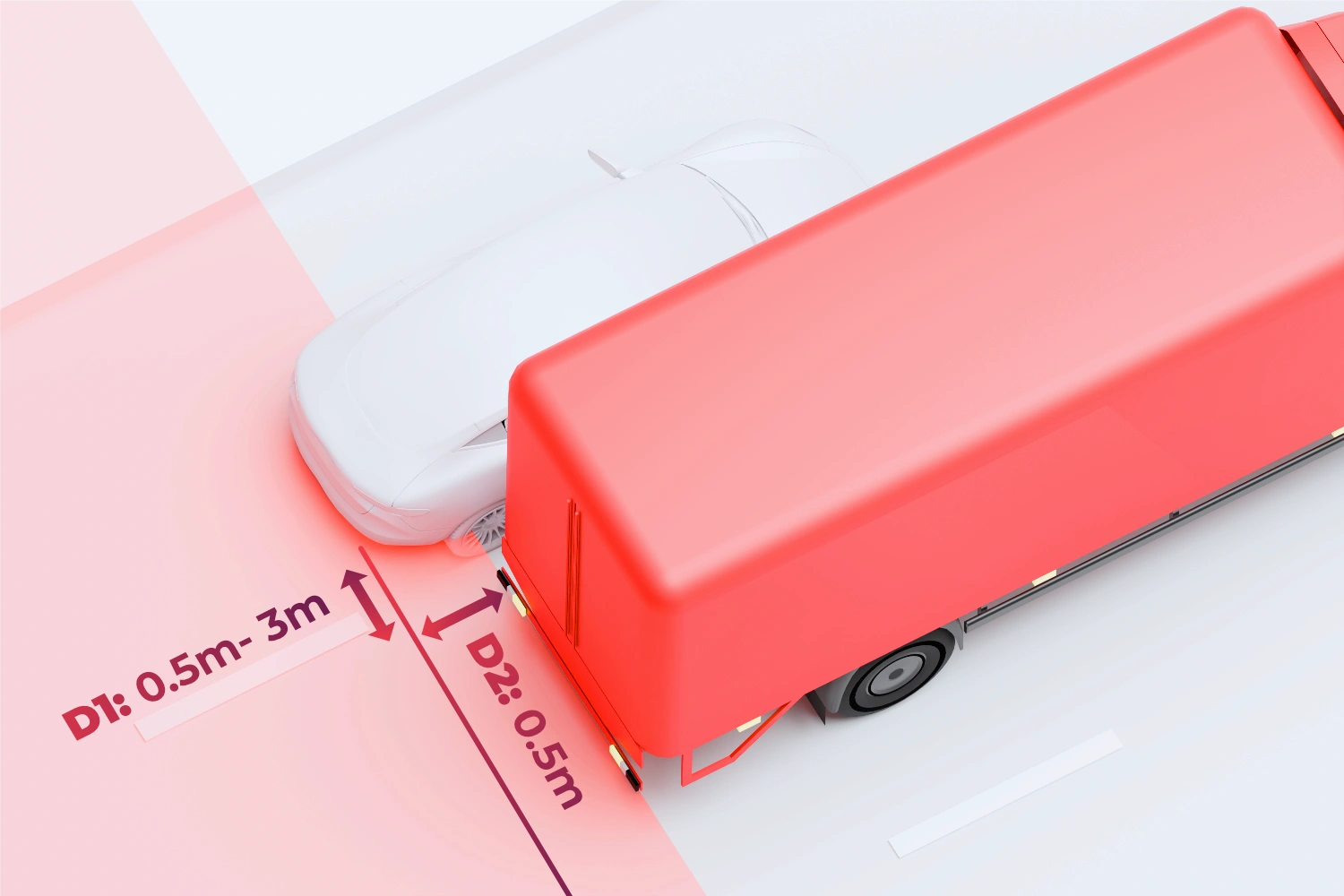

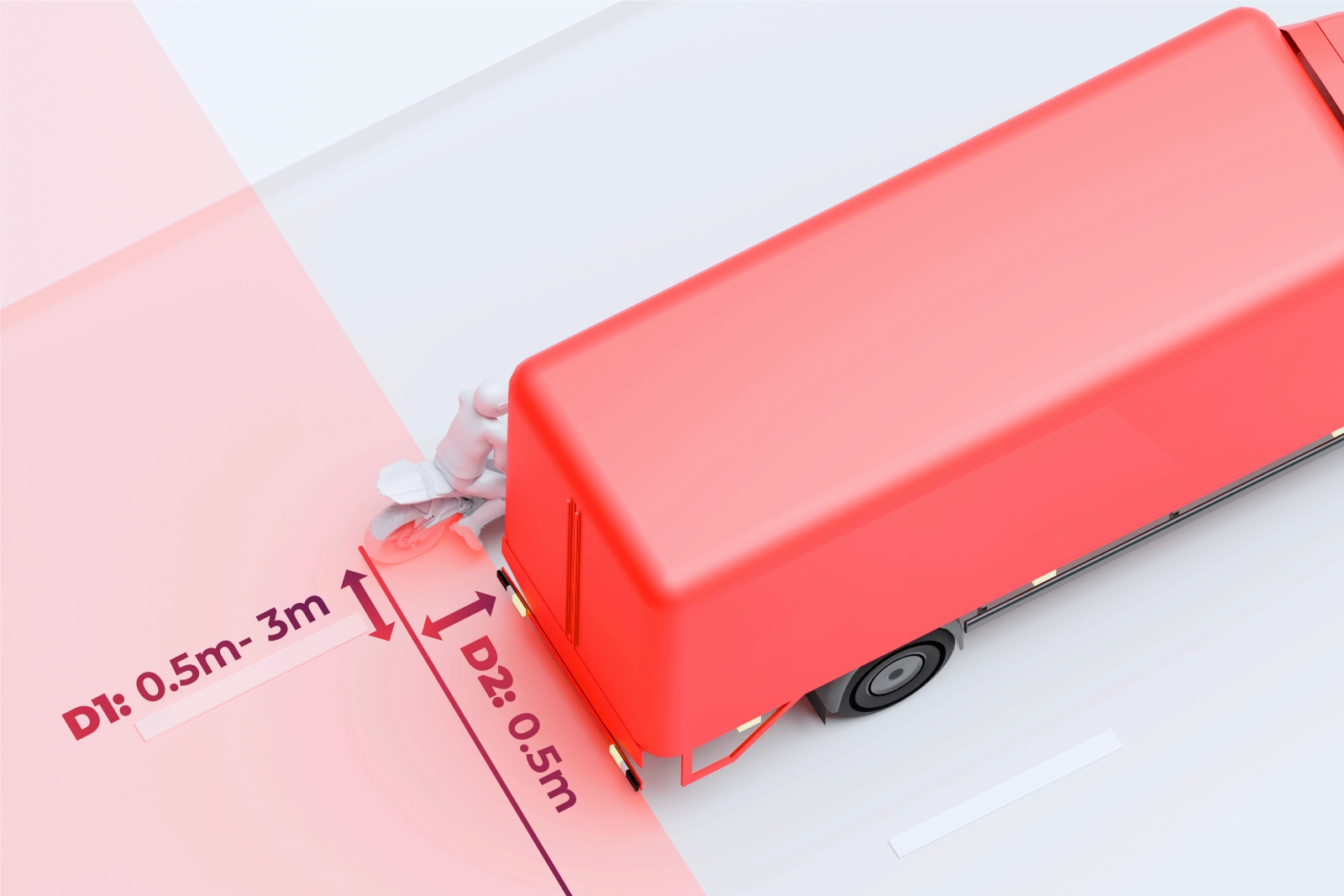

Blind Spot Information System (BSIS)

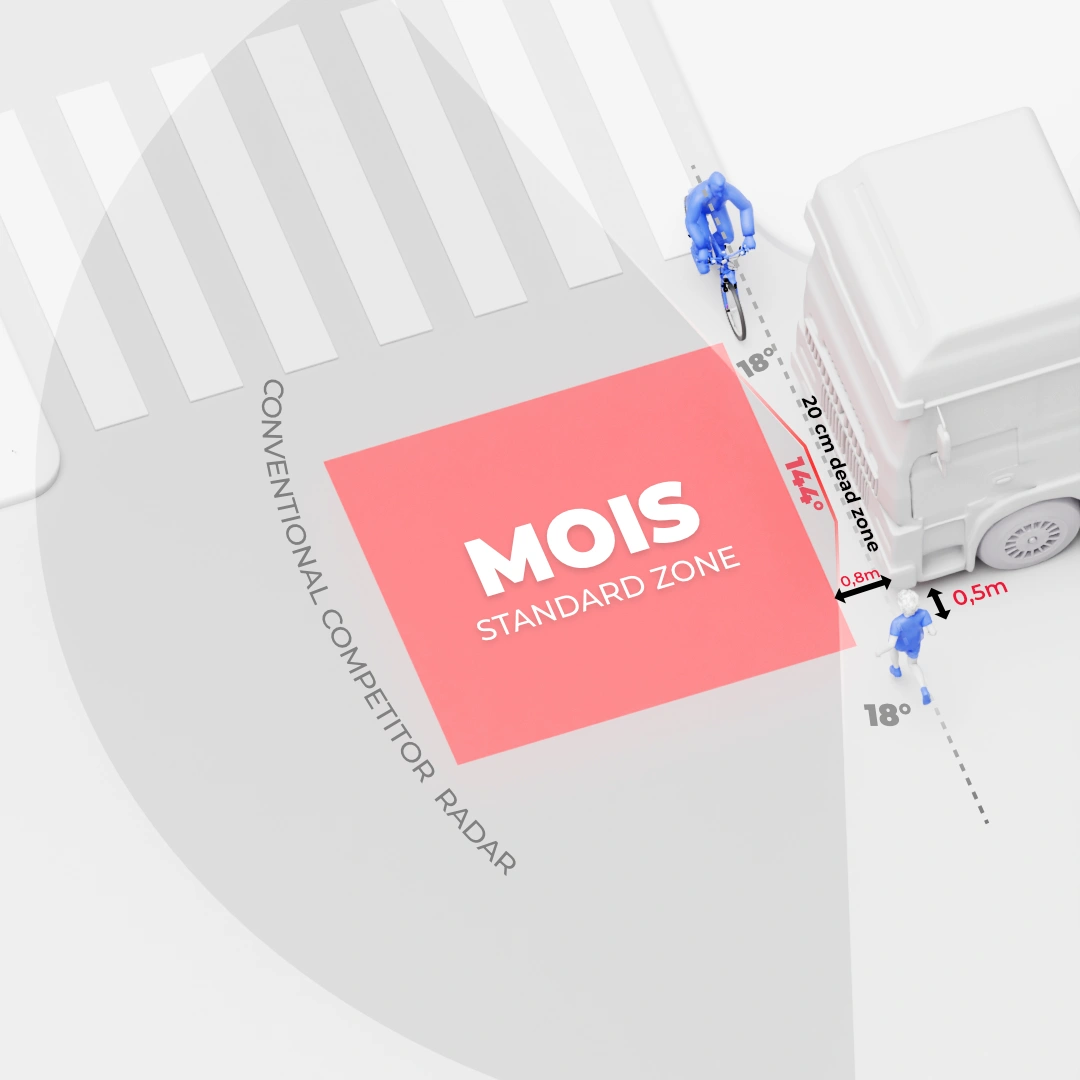

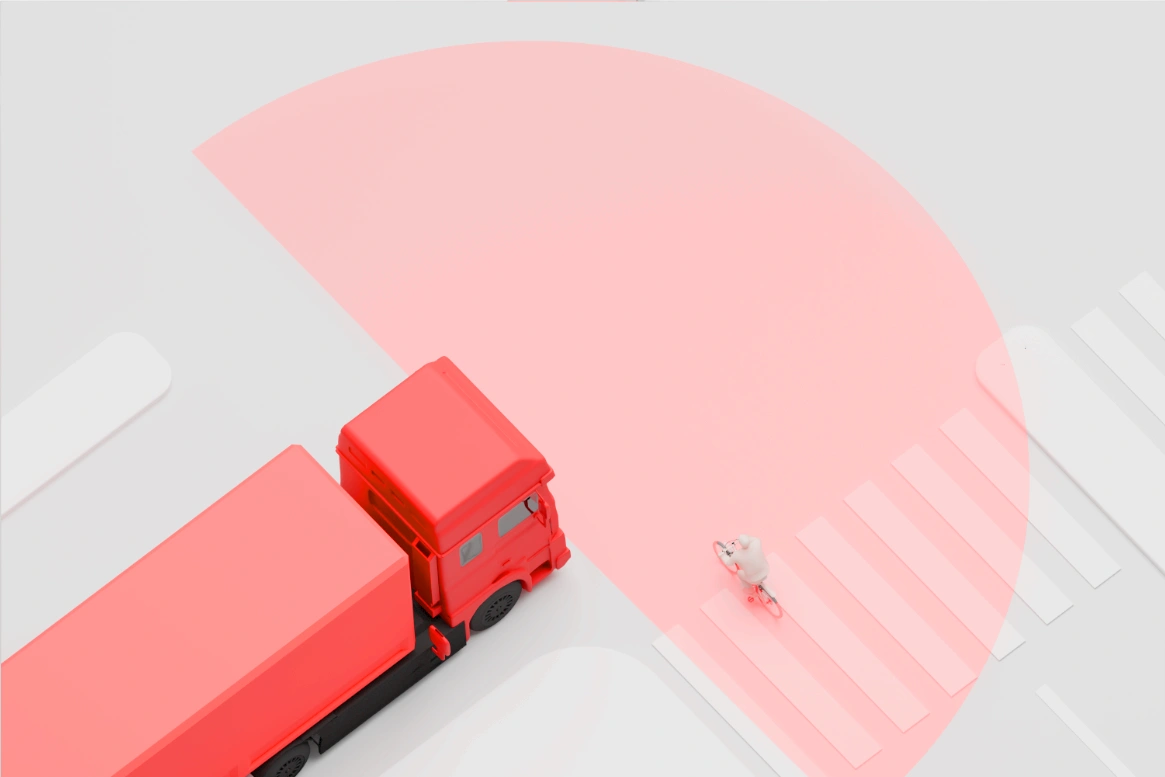

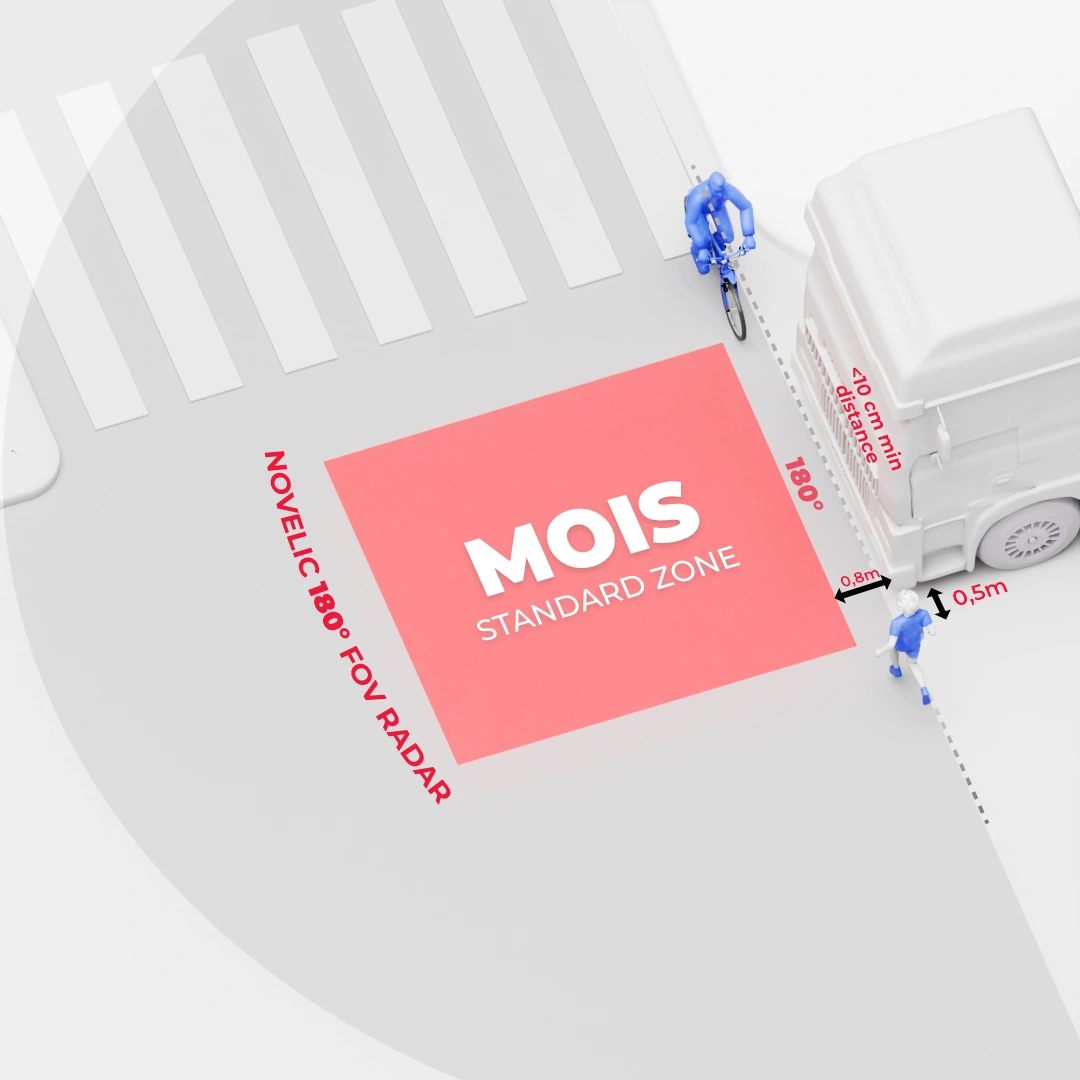

Moving Off Information System (MOIS)

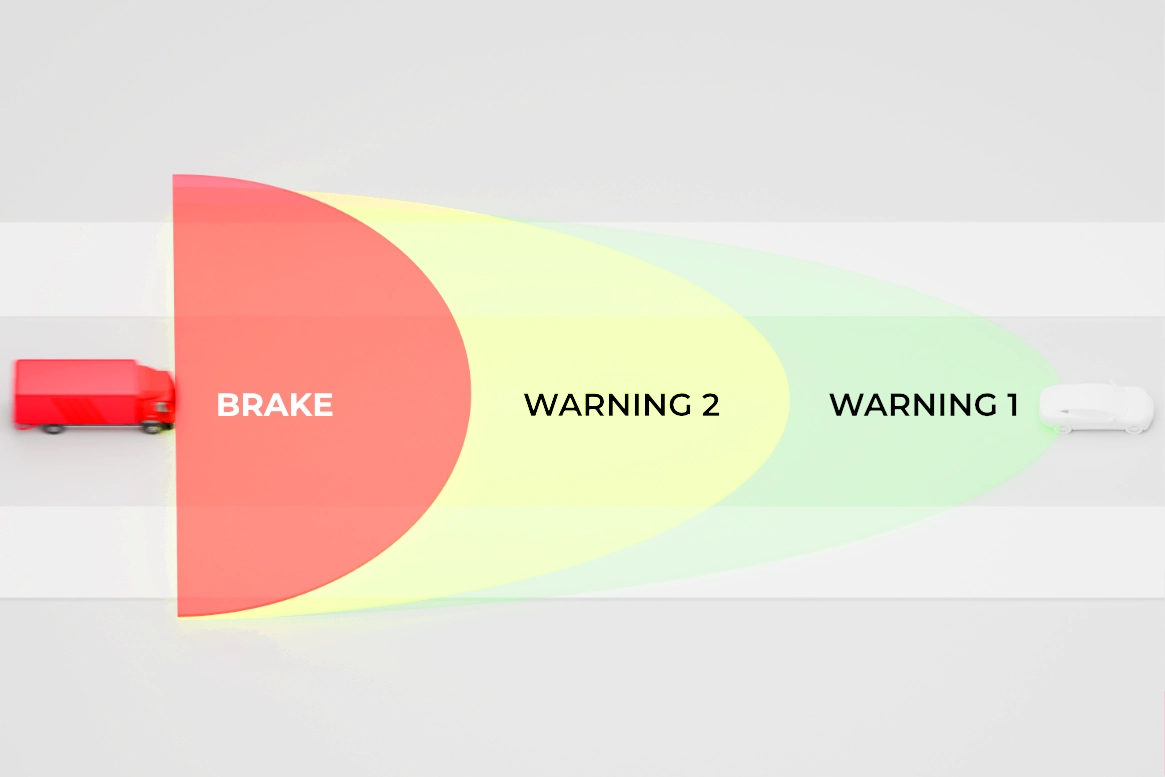

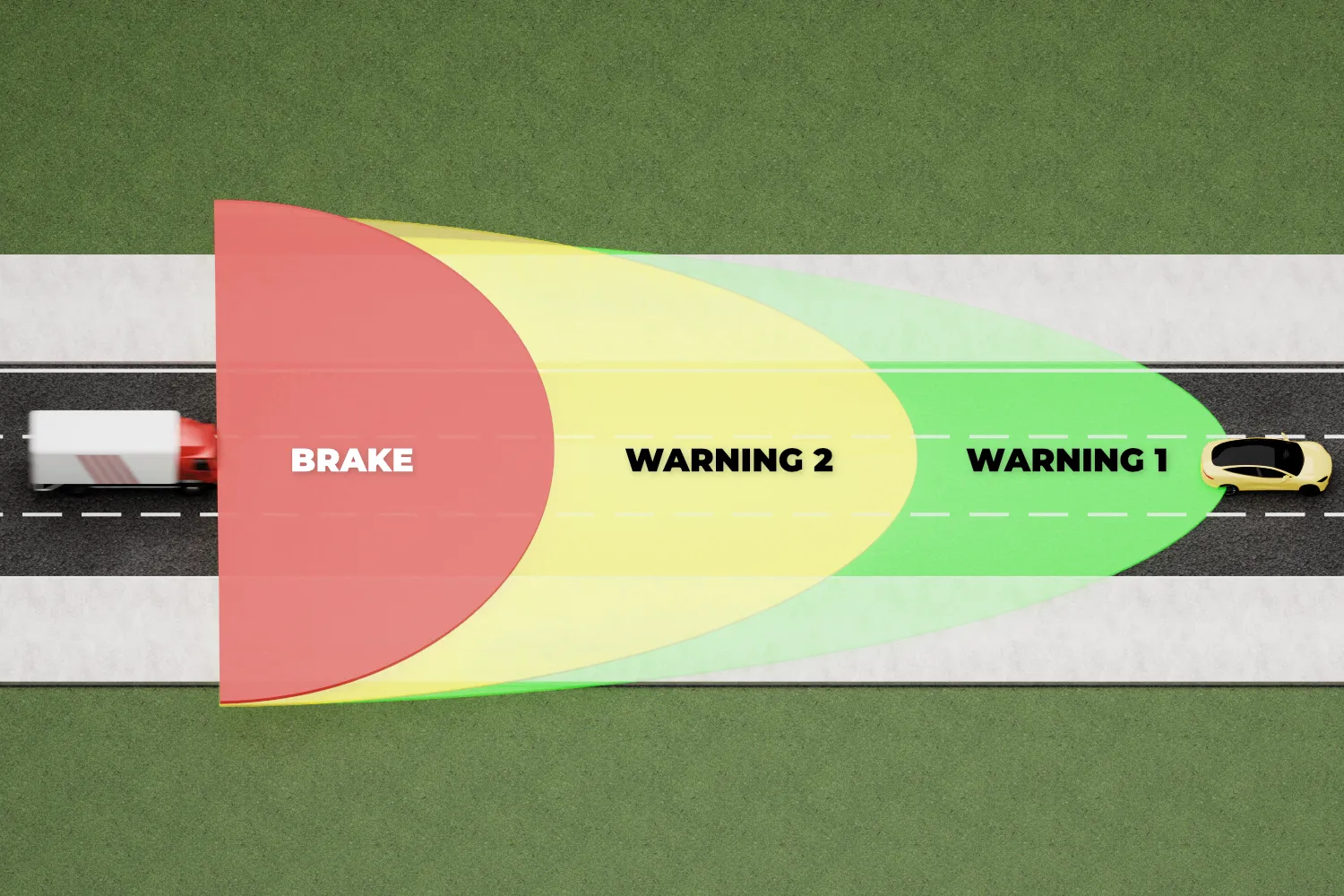

Automatic Emergency Braking (AEB)

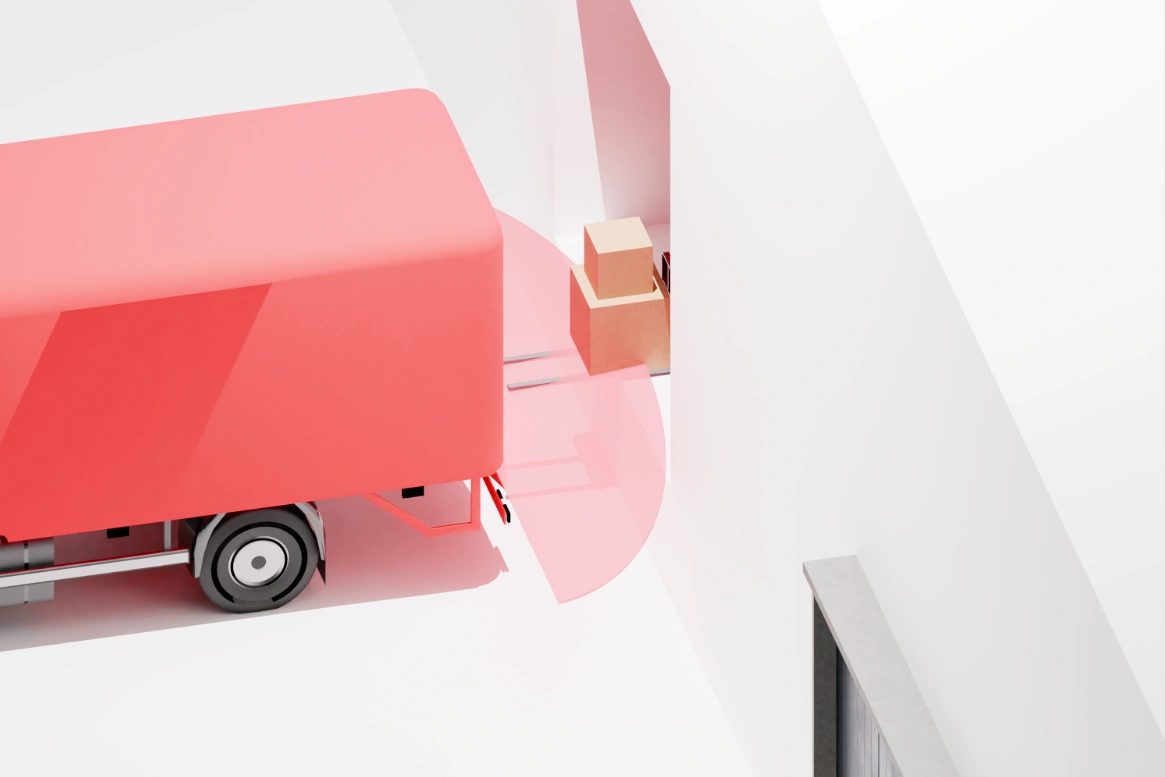

Collision Avoidance for Loading Docks

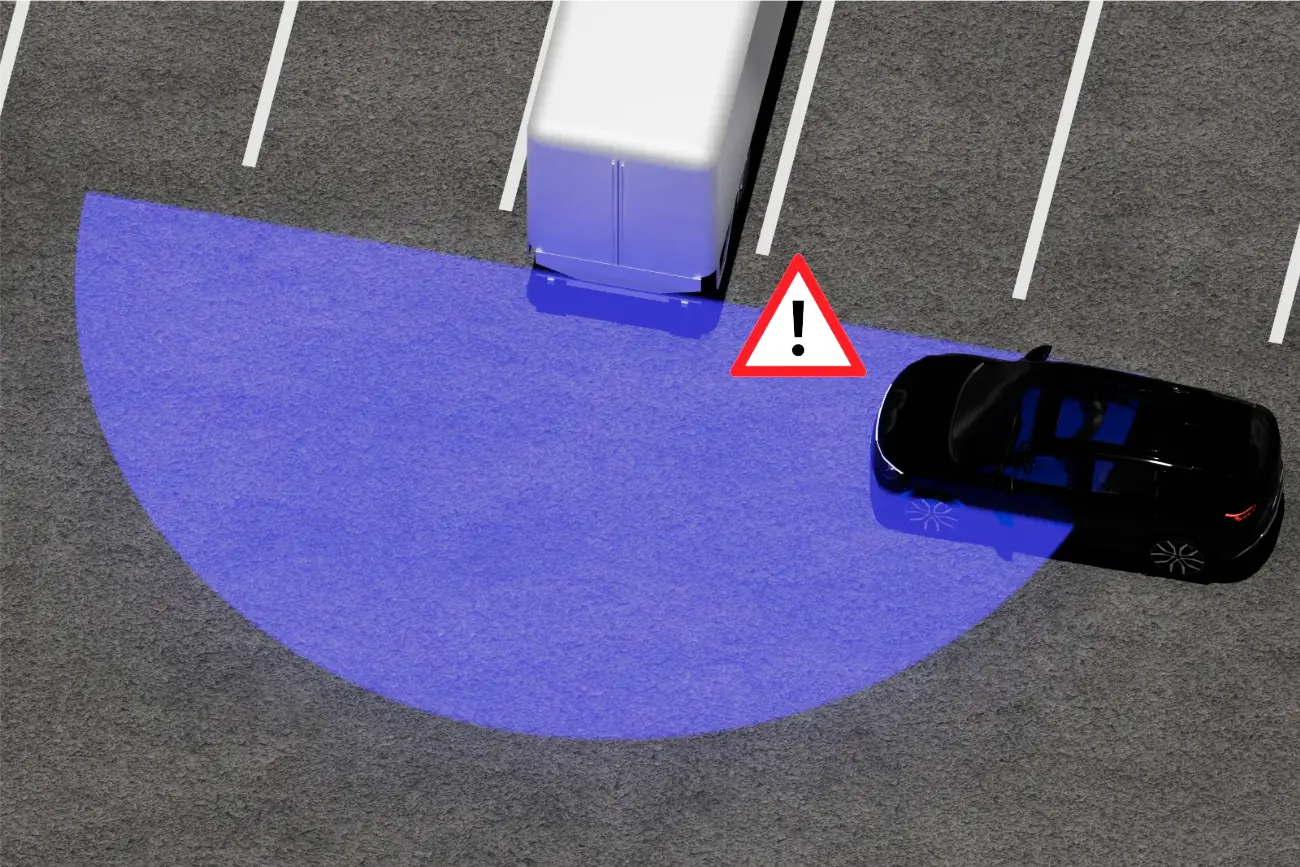

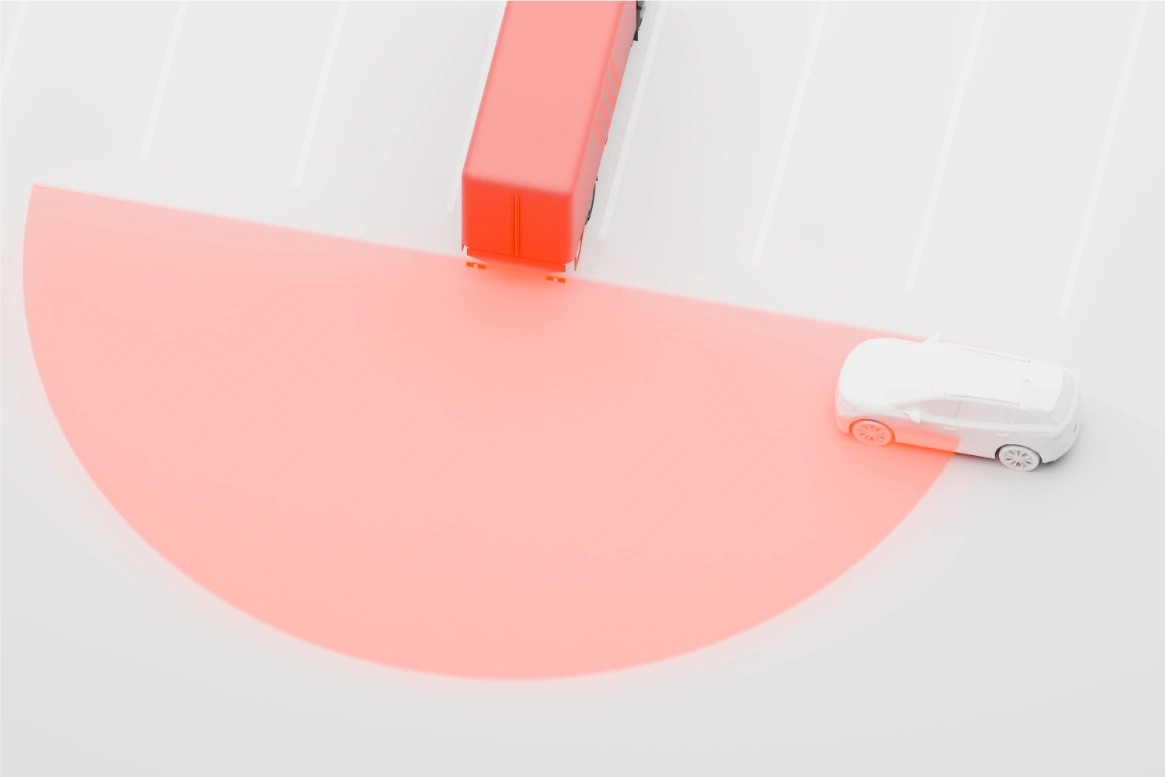

Rear Cross-Traffic Alert (RCTA)

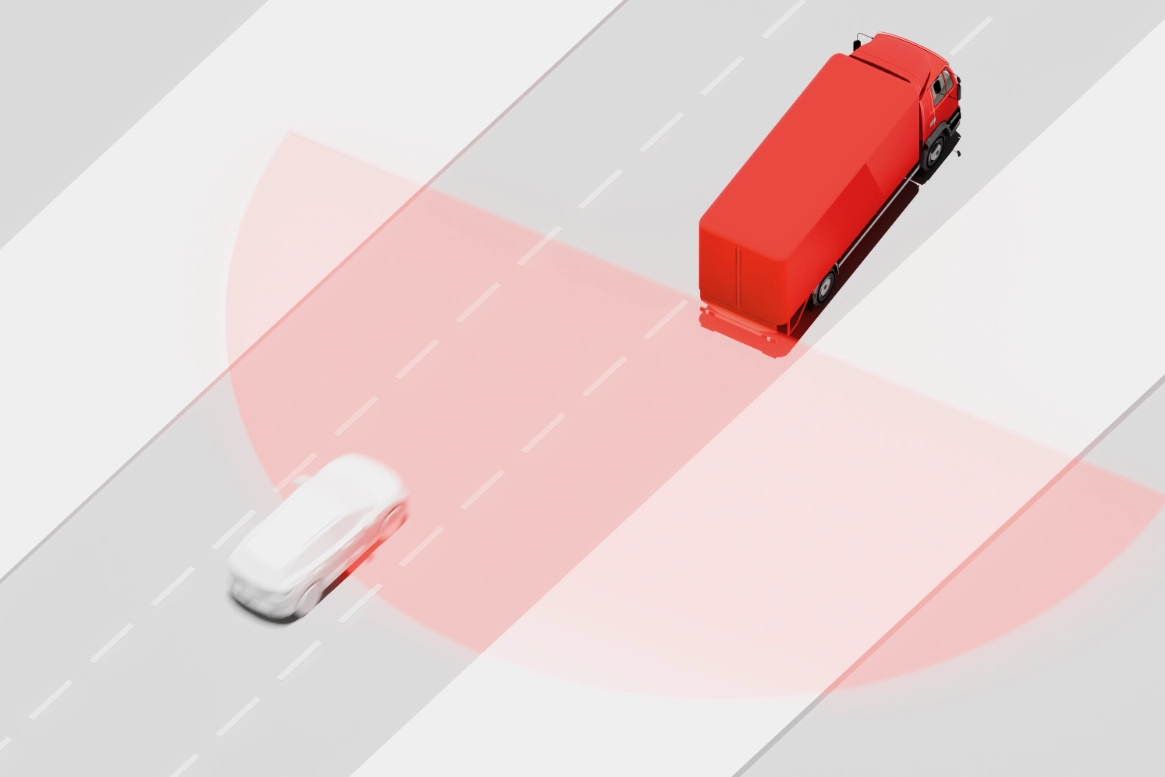

Lane Change Assist (LCA)

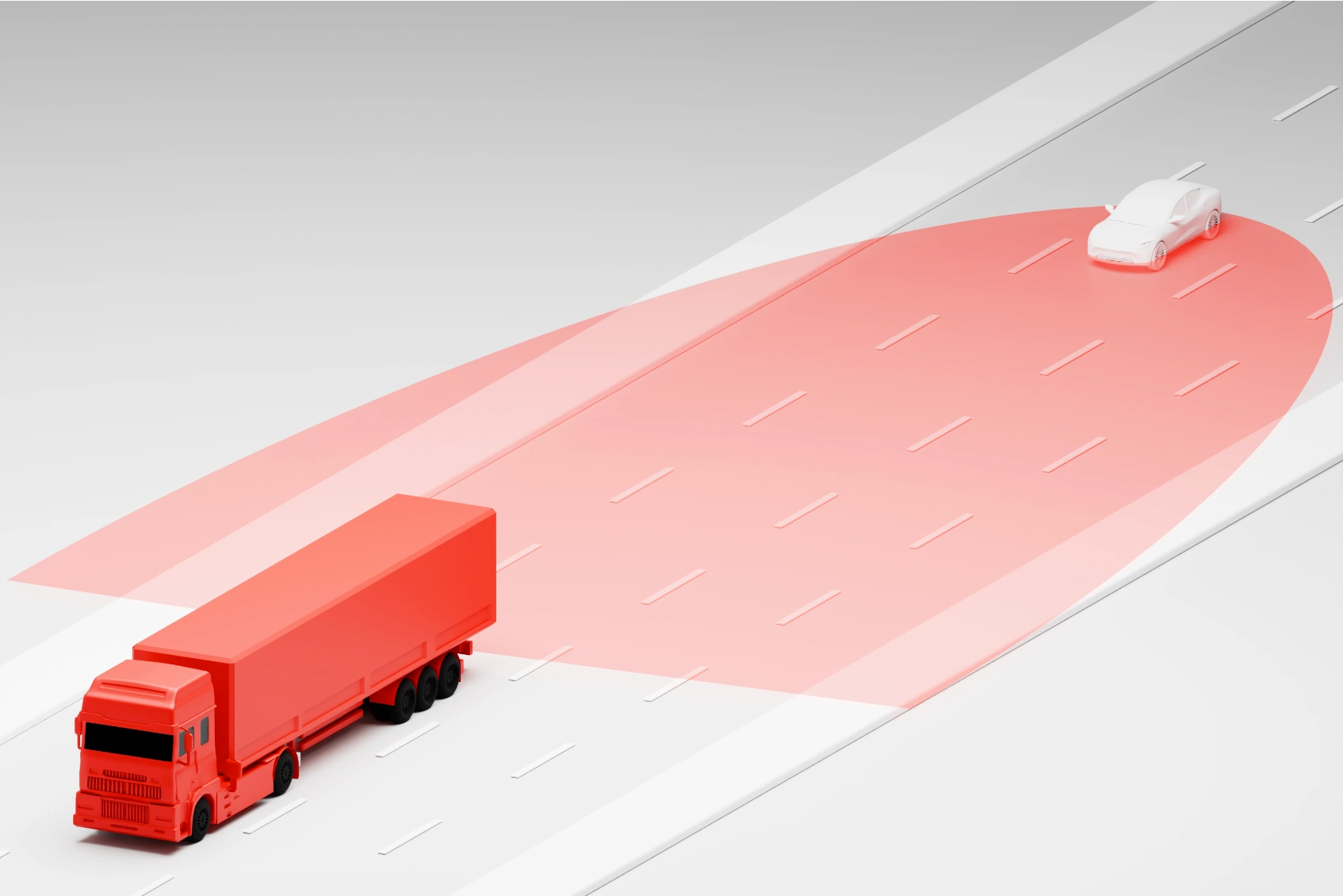

rear collision warning commercial vehicles

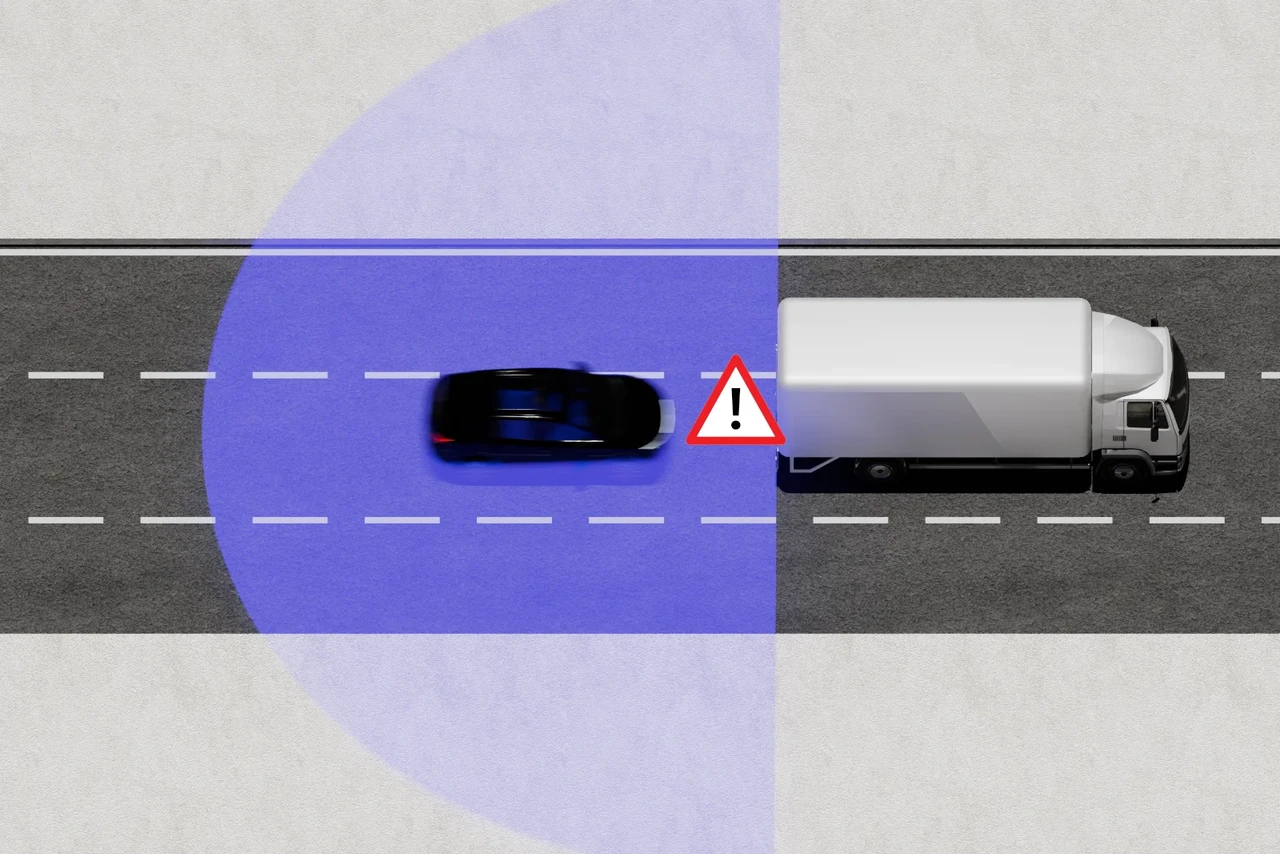

Rear Collision Warning (RCW)

Small sensor, large coverage

Detection of motorcycles – up to 50m

Detection of cars – above 100m

ASPER Platform Applications

Passenger vehicles

Two-wheelers and three-wheelers

Commercial Vehicles

Construction vehicles

Why Choose NOVELIC

Founded in 2012, NOVELIC gathers the finest talent in mmWave, embedded hardware and software engineering, forming a strong foundation for creating innovative end-to-end turnkey solutions.

With 6 engineering centers in Europe, more than 300 successful projects, more than 150 satisfied customers and a robust portfolio of radar sensor IPs, we’re a trusted partner when it comes to delivering custom solutions for automotive, commercial vehicle, industrial, and medical markets.
