180° FoV Radar Sensor
for Two-wheelers
NOVELIC’s ASPER 79GHz mmWave radar sensors for two-wheelers cover 180 degrees with only one module – enabling Advanced Rider Assistance System (ARAS) features such as blind spot detection (BSD), front cross-traffic alert (FCTA), forward collision warning (FCW), rear collision warning (RCW), wrong-side alert, and lane change assistance (LCA).
180°
field of view
100m at 0°
max range
~79GHz
frequency band
6-16V
Supply Voltage
CAN Interface
On-module processing
Optional wireless Connectivity
A novel approach to ARAS
NOVELIC’s patented ASPER 79 GHz radar sensor platform covers a field-of-view of 180° with only one radar chip, making for a cost-effective front radar and rear radar solution.
All the necessary data processing is done on the module, enabling OEMs to integrate the sensor via a wired CAN interface or automotive-grade wireless connection, even without a CAN network in place. This enables warnings to be displayed on the motorcycle’s HMI, LED indicators on the rearview mirror, or through a smart helmet.
Motorcycle radar applications

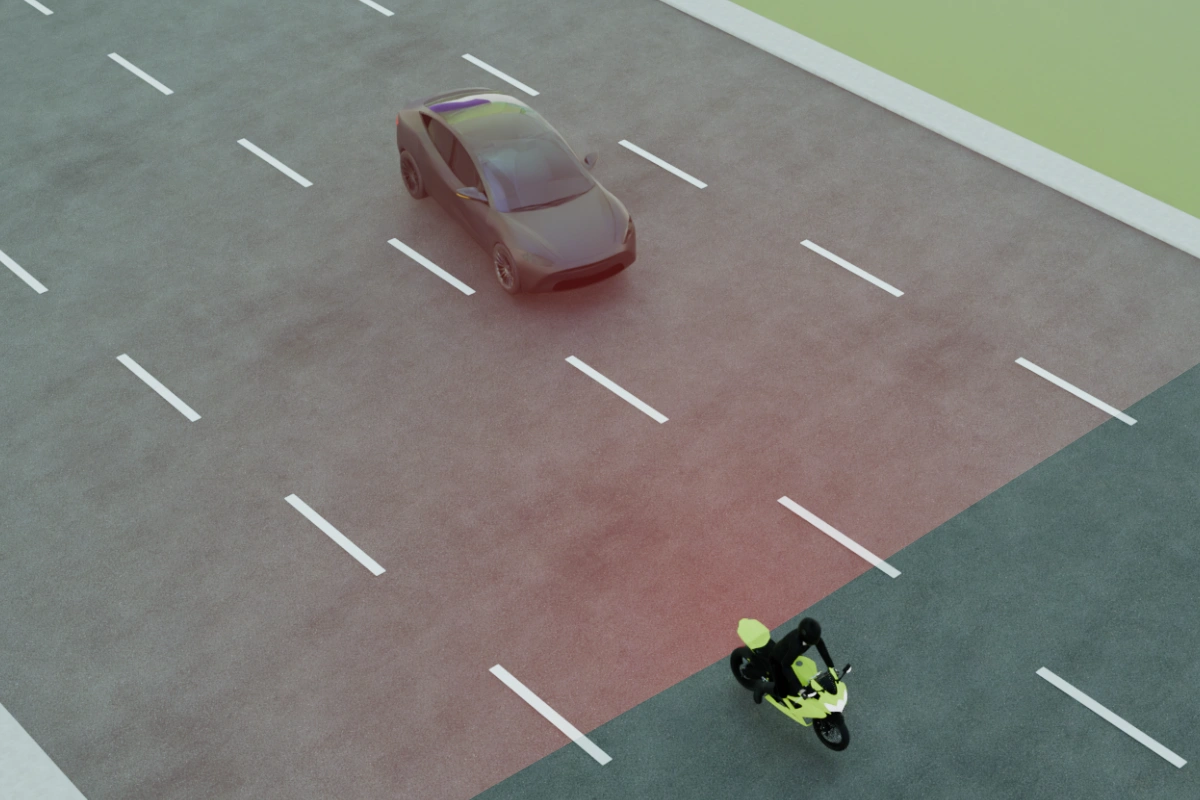

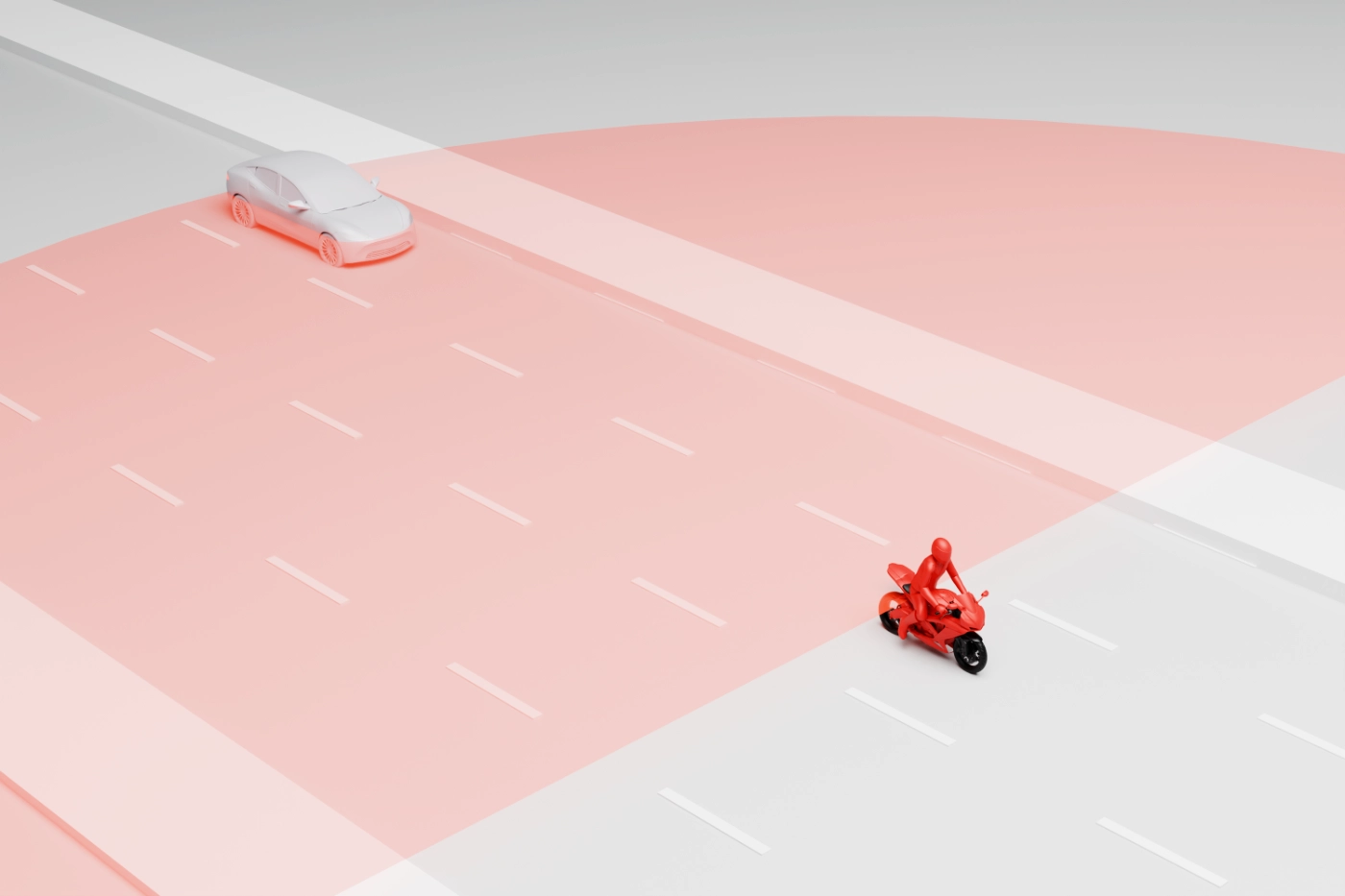

Blind Spot Detection

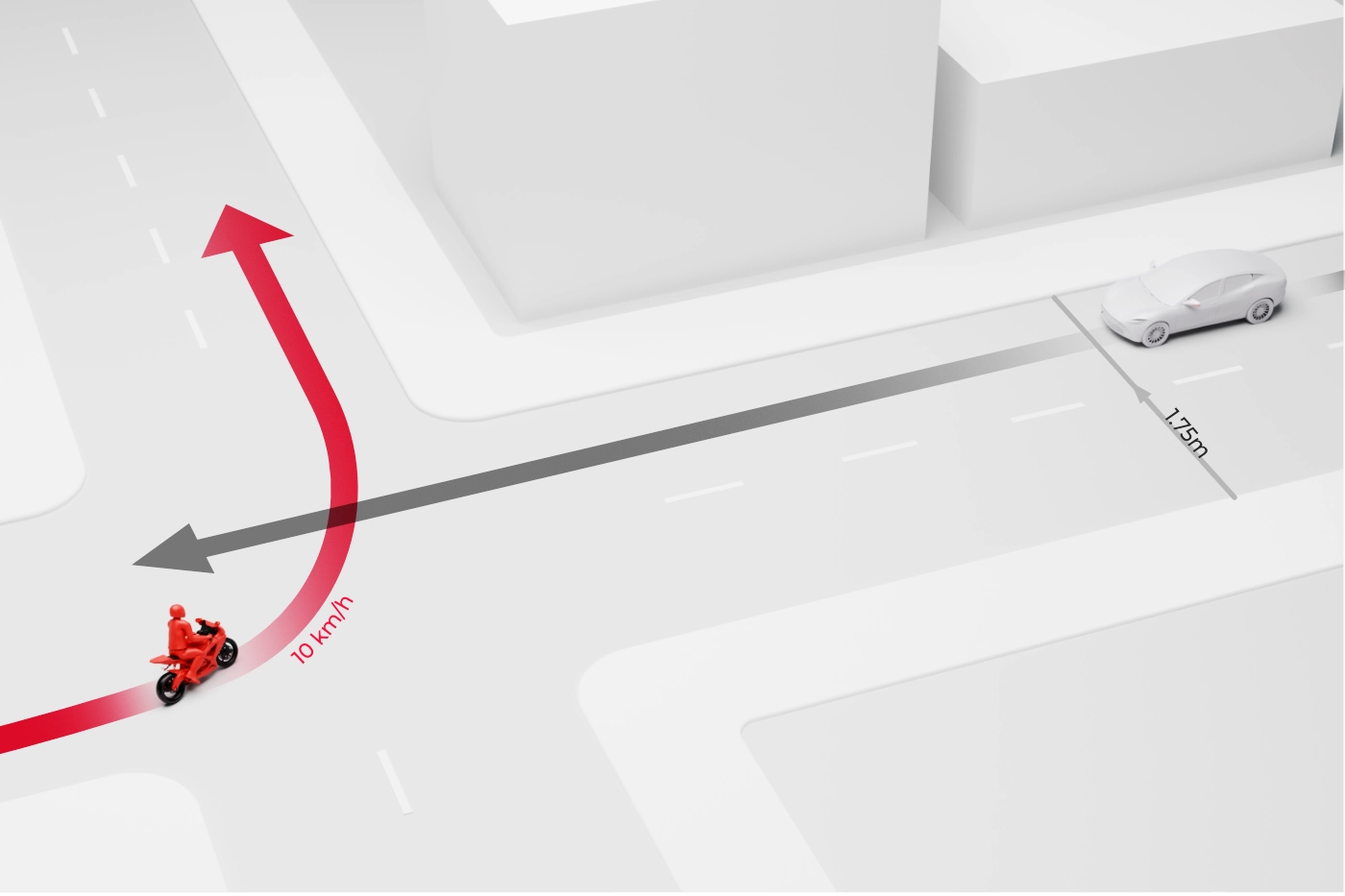

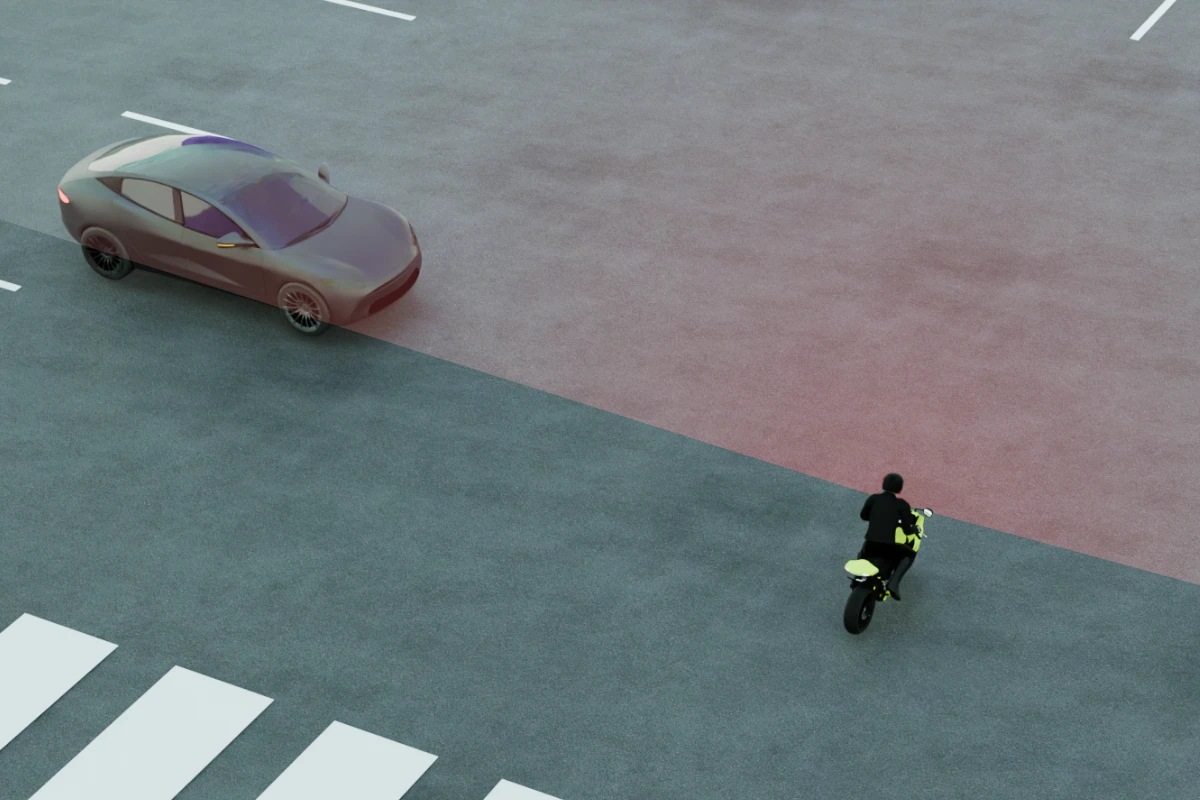

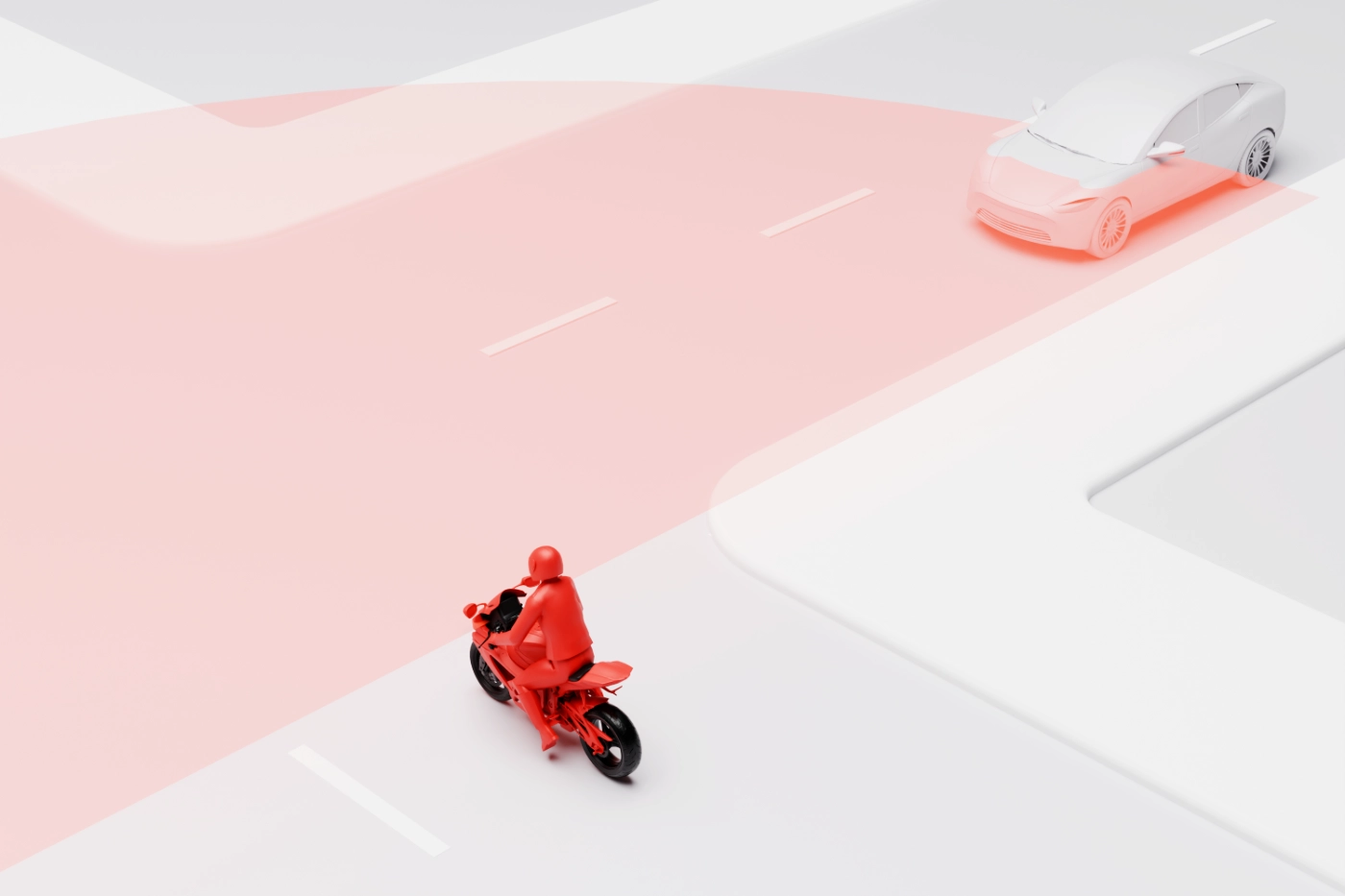

Front Cross-Traffic Alert
Rear Collision Warning

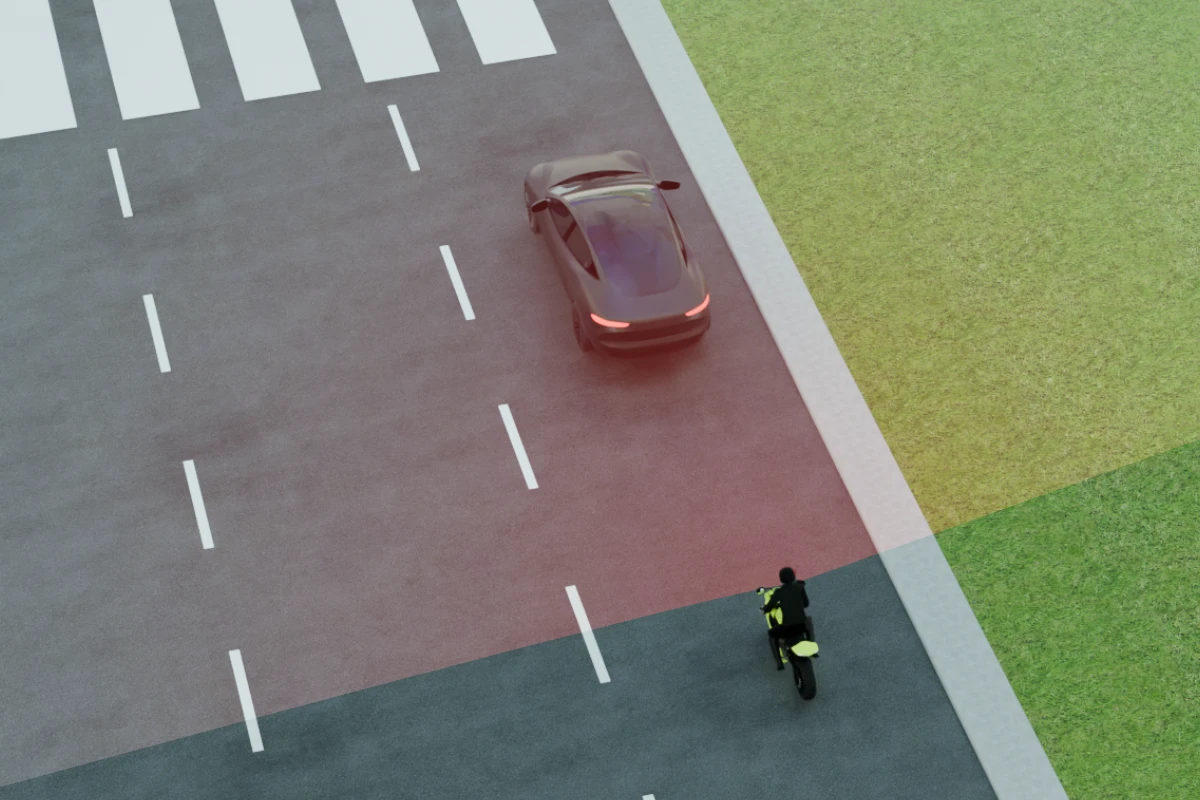

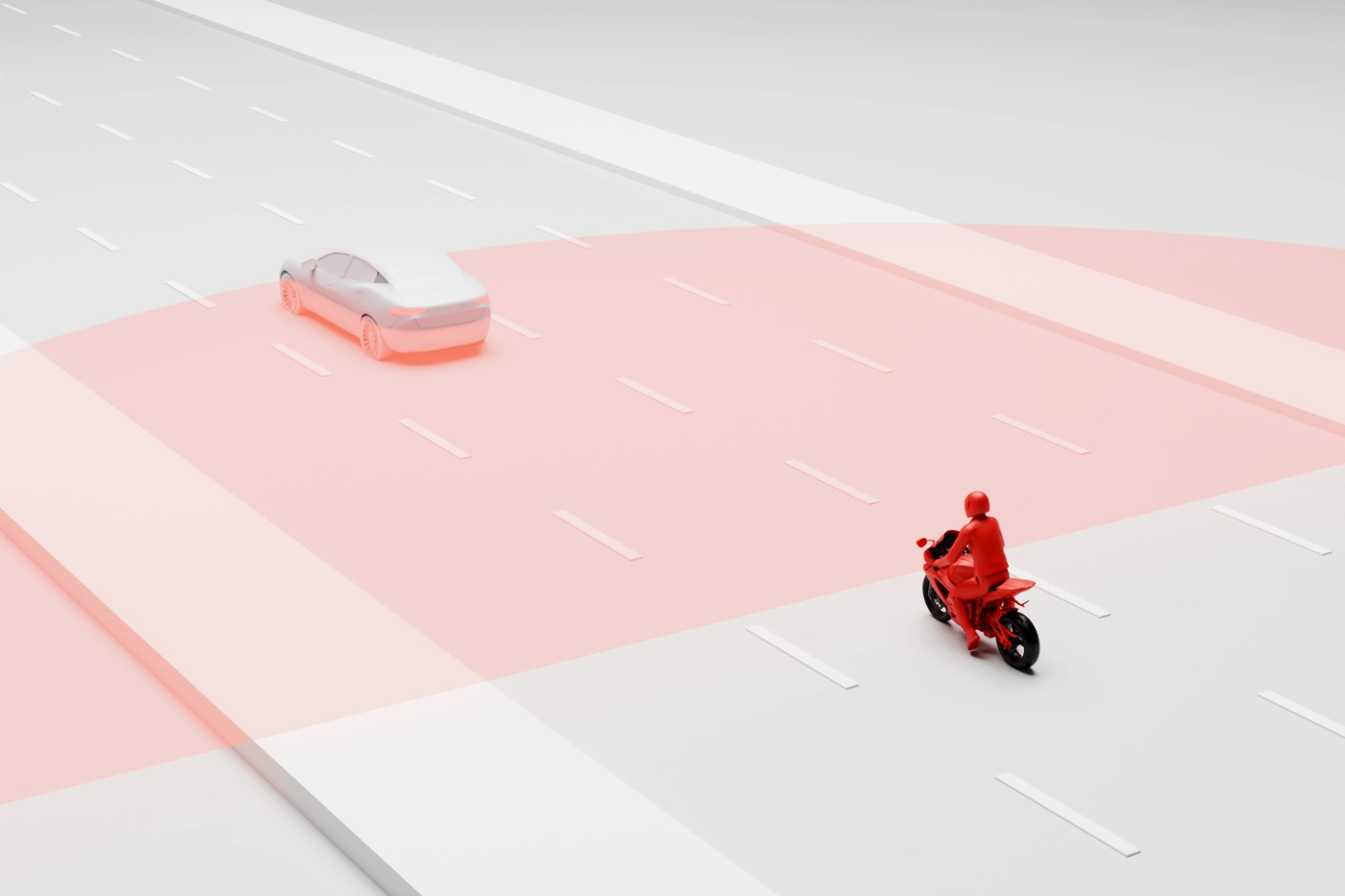

Front Collision Warning
Detection of stagnating vehicles
Detection of passenger vehicles in close blind spots, at a low or zero relative speed

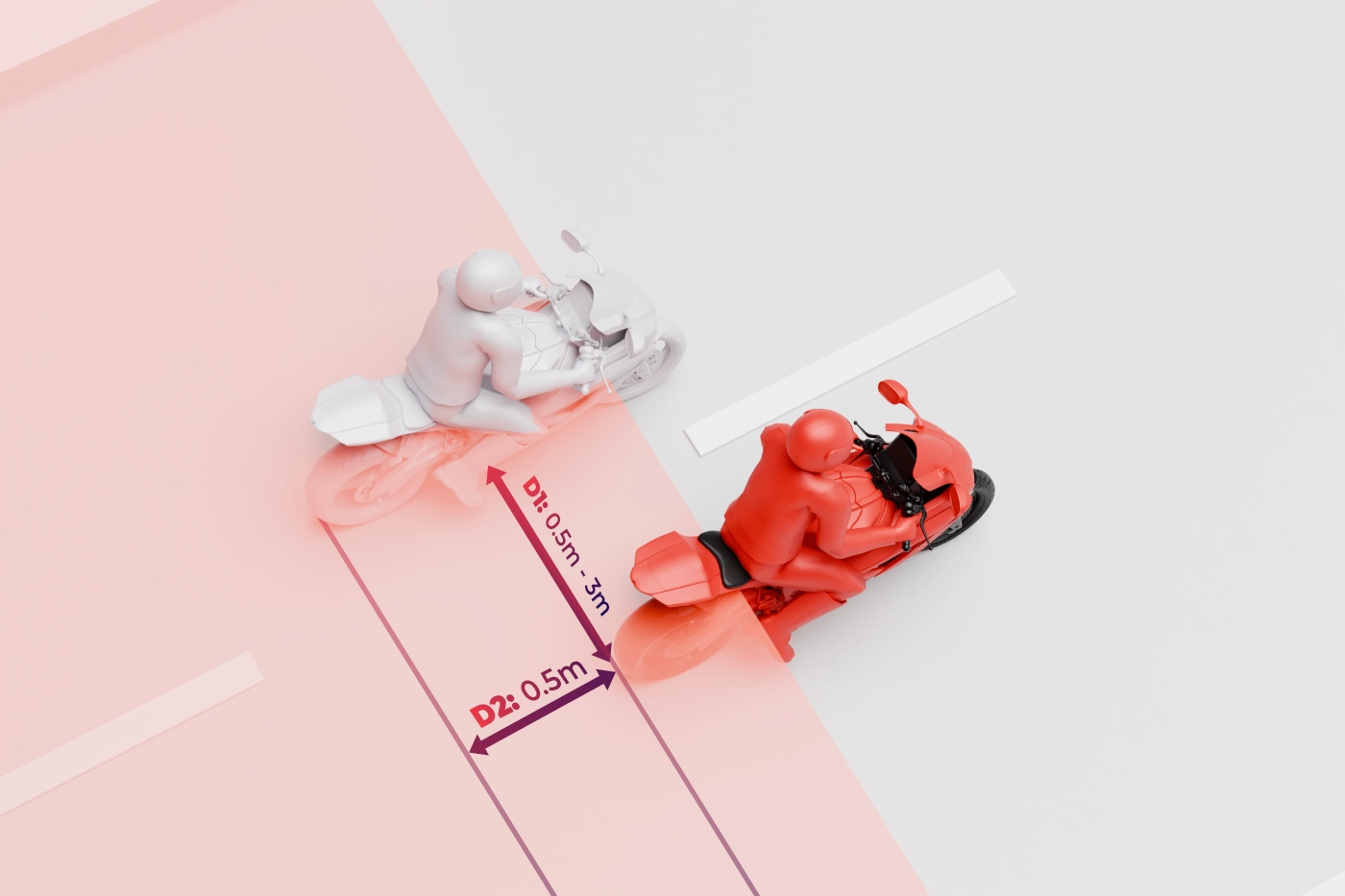

Detection of motorcycles in close blind spots, at a low or zero relative speed

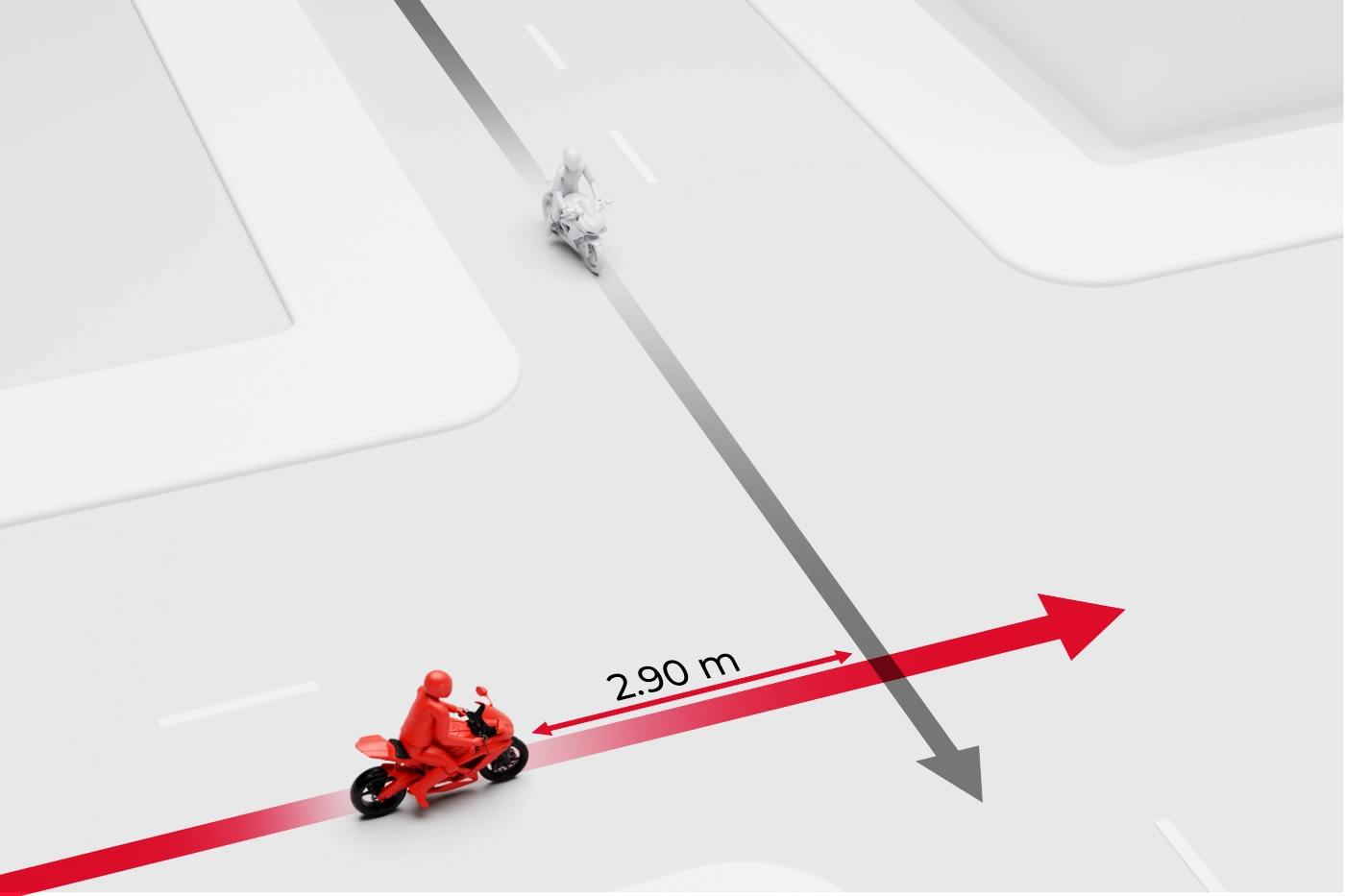

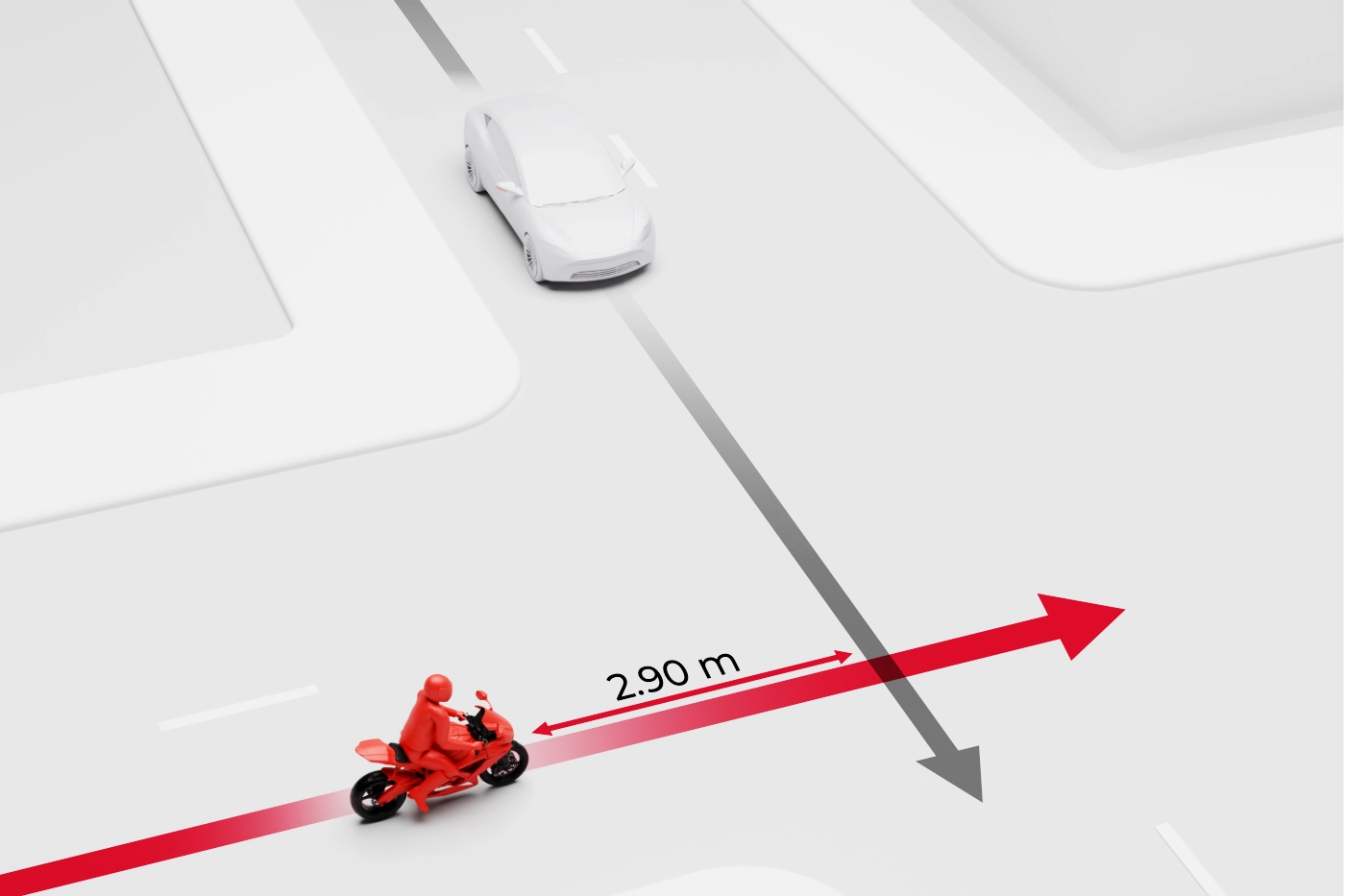

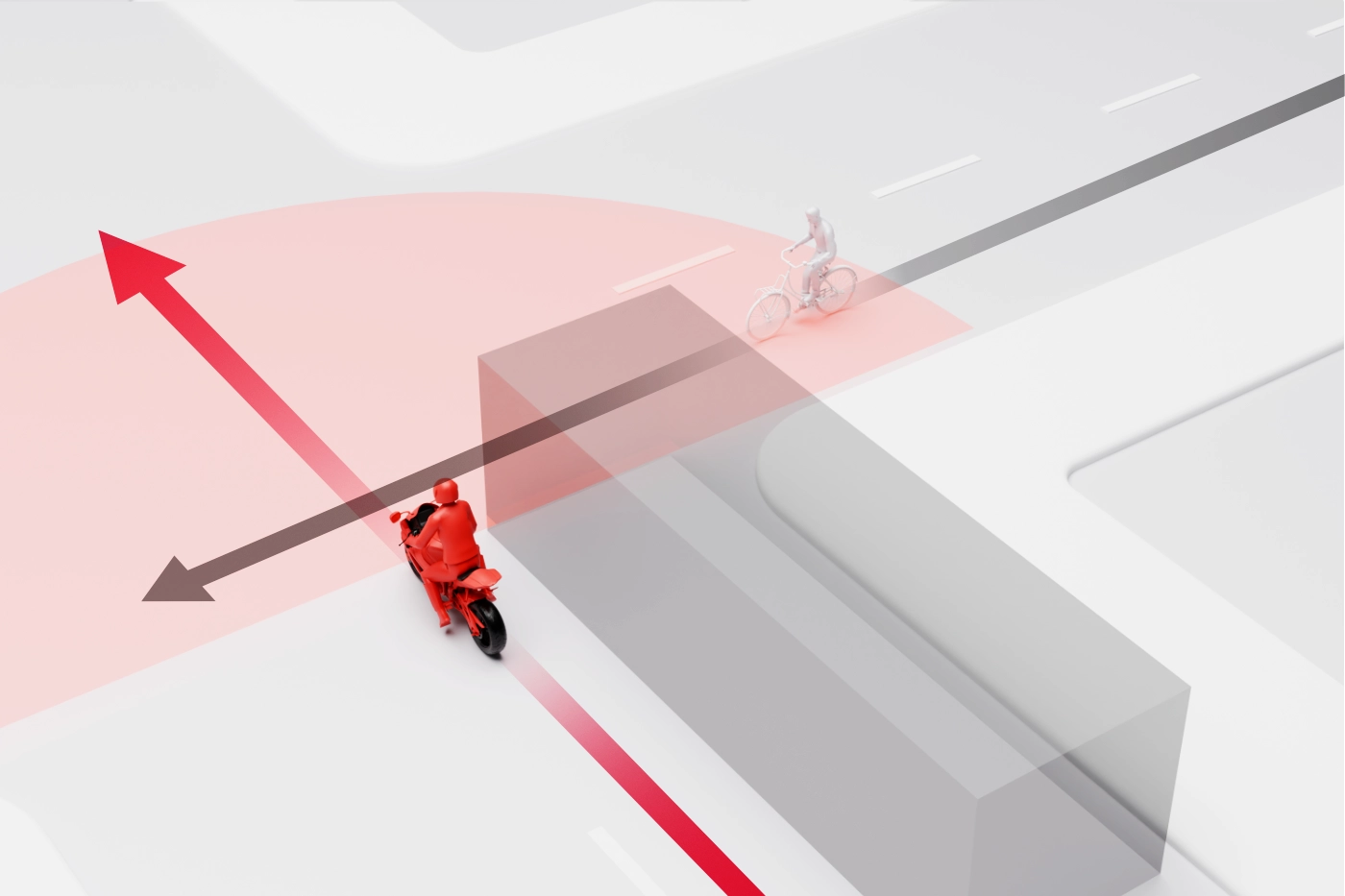

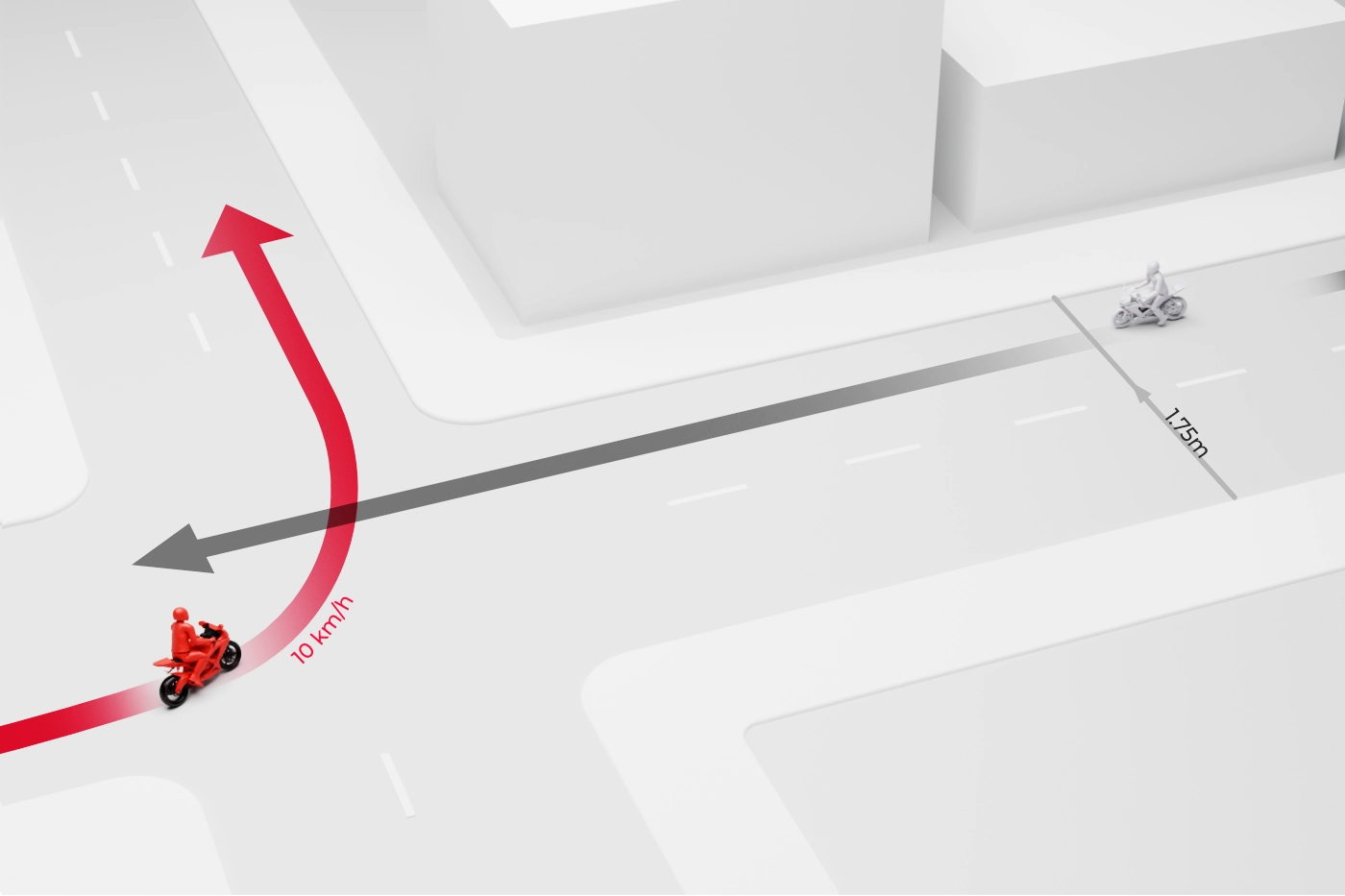

Euro NCAP scenarios fulfilled by ASPER
These scenarios pose a challenge to present-day motorcycle radar sensors, due to their limited range and field-of-view. Due to the 50ms update rate and 130m max range at 0°, ASPER radar sensors detect static and moving targets on time to provide life-saving alerts to riders.

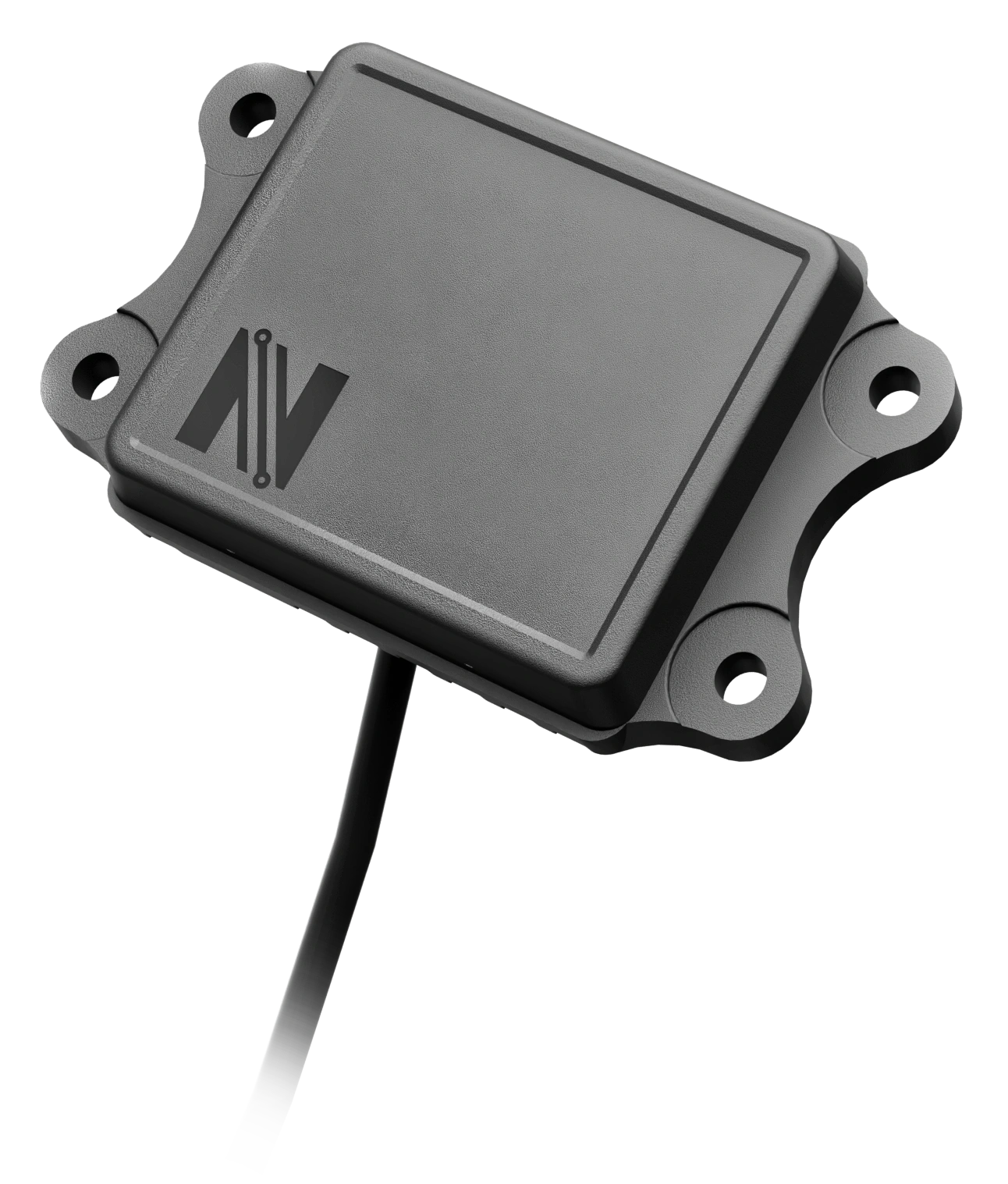

A wide-angle radar for ARAS functions.
The case design, dimensions and specifications represent a reference design, and are subject to change without notice.
| Operating Frequency | 76 – 77 GHz |
| Field of View – Azimuth | 175° |
| Field of View – Elevation | 20° |
| Detection range | 50 cm – 120m |
| Refresh rate | 20 Hz |
| Operating voltage | 6 – 16V |
| Max power consumption | 1.5 W |
| Average power consumption | 0.5 W |
| Communication | CAN-FD, HMI Driver |
Small sensor, large coverage
ASPER Platform Applications
Two-wheelers and three-wheelers
Construction vehicles
Why Choose NOVELIC
Founded in 2012, NOVELIC gathers the finest talent in mmWave, embedded hardware and software engineering, forming a strong foundation for creating innovative end-to-end turnkey solutions.
With 6 engineering centers in Europe, more than 300 successful projects, more than 150 satisfied customers and a robust portfolio of radar sensor IPs, we’re a trusted partner when it comes to delivering custom solutions for automotive, commercial vehicle, industrial, and medical markets.
