volumetric anti theft

ACAM200 Intrusion & Proximity Alert

Volumetric Anti-Theft Sensor

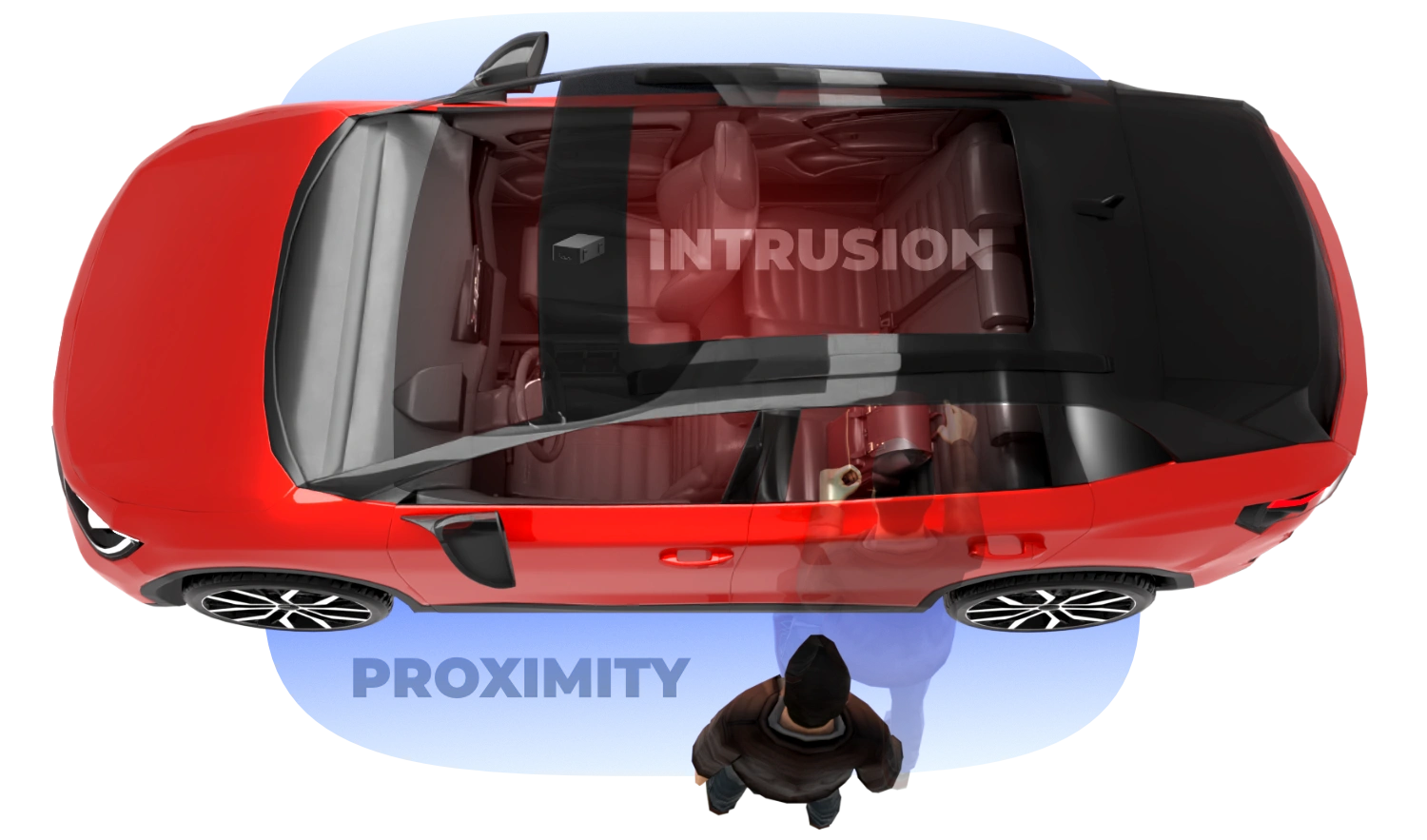

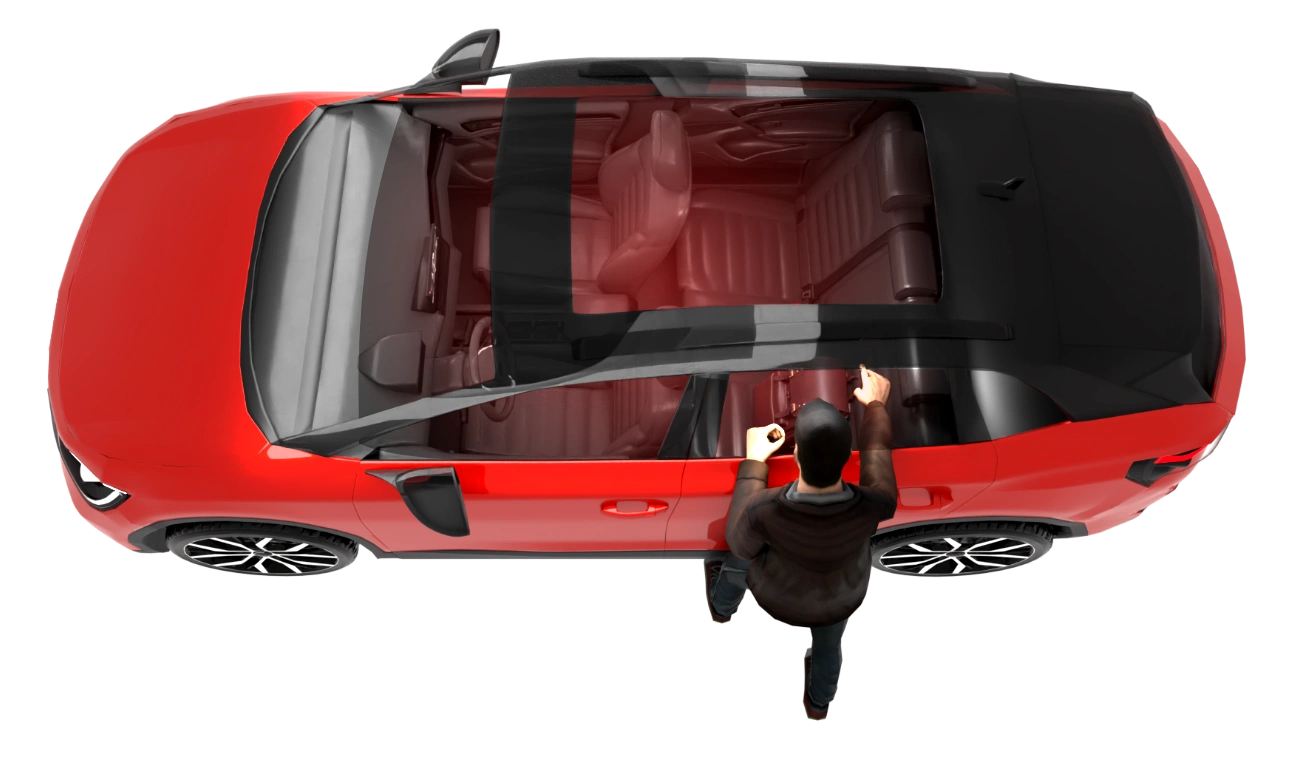

NOVELIC’s 60 GHz mmWave radar volumetric anti-theft sensor, integrated into the overhead console or under the roof of the car, monitors the car’s cabin and its immediate surroundings, allowing for proximity and intrusion alerts.

The small, power-efficient module allows for long-term monitoring of the car’s surroundings, enabling a “sentry mode”-like experience without draining the car’s battery like camera-based systems.

un ece r116

UN ECE R116 Compliant

thatcham anti theft sensor

Thatcham standard device

intrusion volumetric anti theft sensor

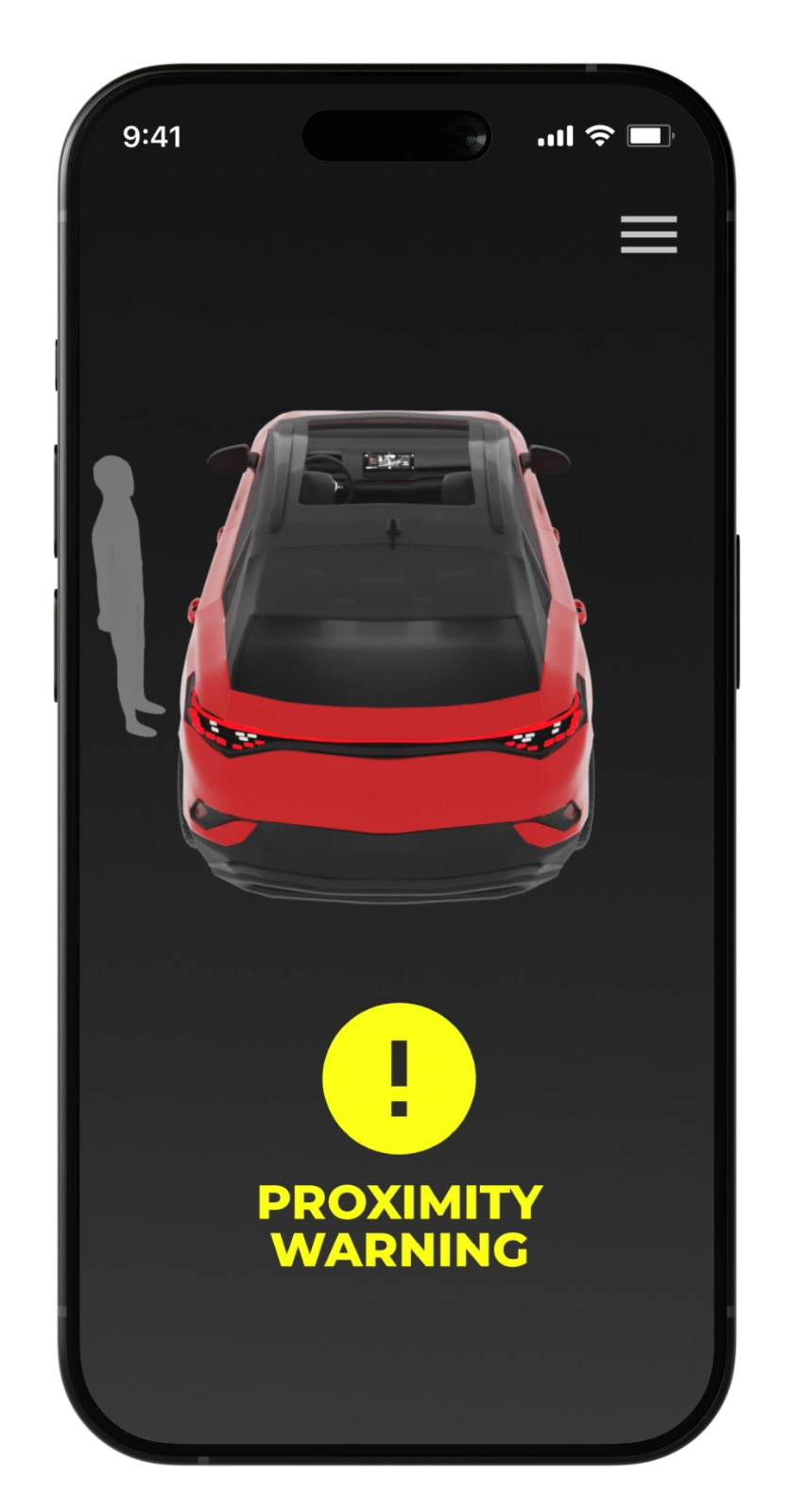

proximity volumetric anti theft sensor

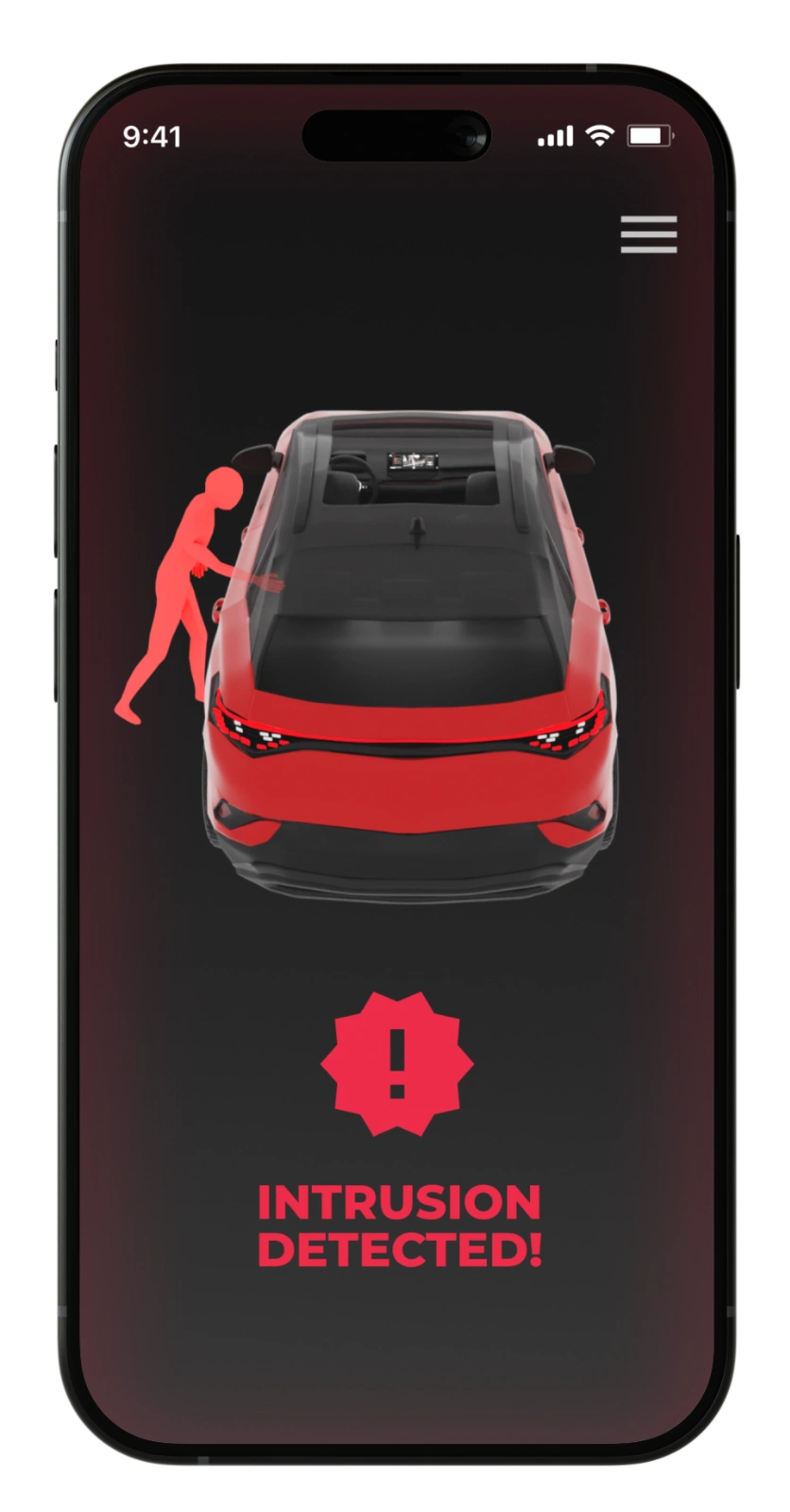

intrusion volumetric anti theft sensor

Technical specifications

Operating Frequency 60 GHz
Technology Antenna in Package
Frequency range 57.7 GHz – 62.4 GHz
Field of View – Azimuth 115°
Field of View – Elevation 108°
Dimensions (without mounting elements) 55mm x 33.8 mm x 16.55m
AEC-Q100 Grade 2 (-40°C to 85°C)
Ingress Protection Class IP51
Interface Protocol CAN-FD, LIN, ETH
Voltage Supply Range 9V – 16V (Normal Operation)
Operating System AutoSAR Classic
Functional Safety Rating QM
Cybersecurity Hardware Support Yes (Full EVITA HSM)
Total Product Mass 24 g
